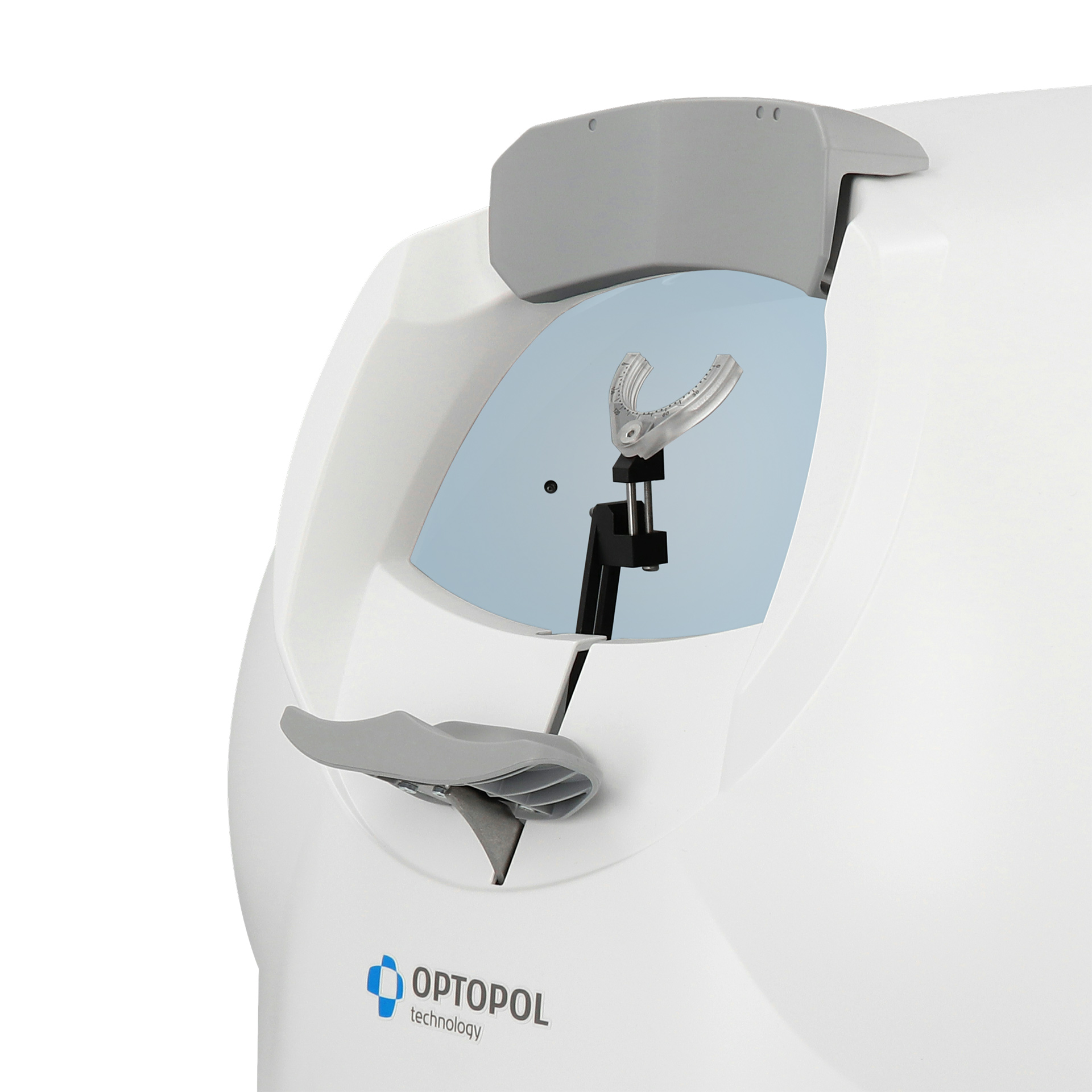

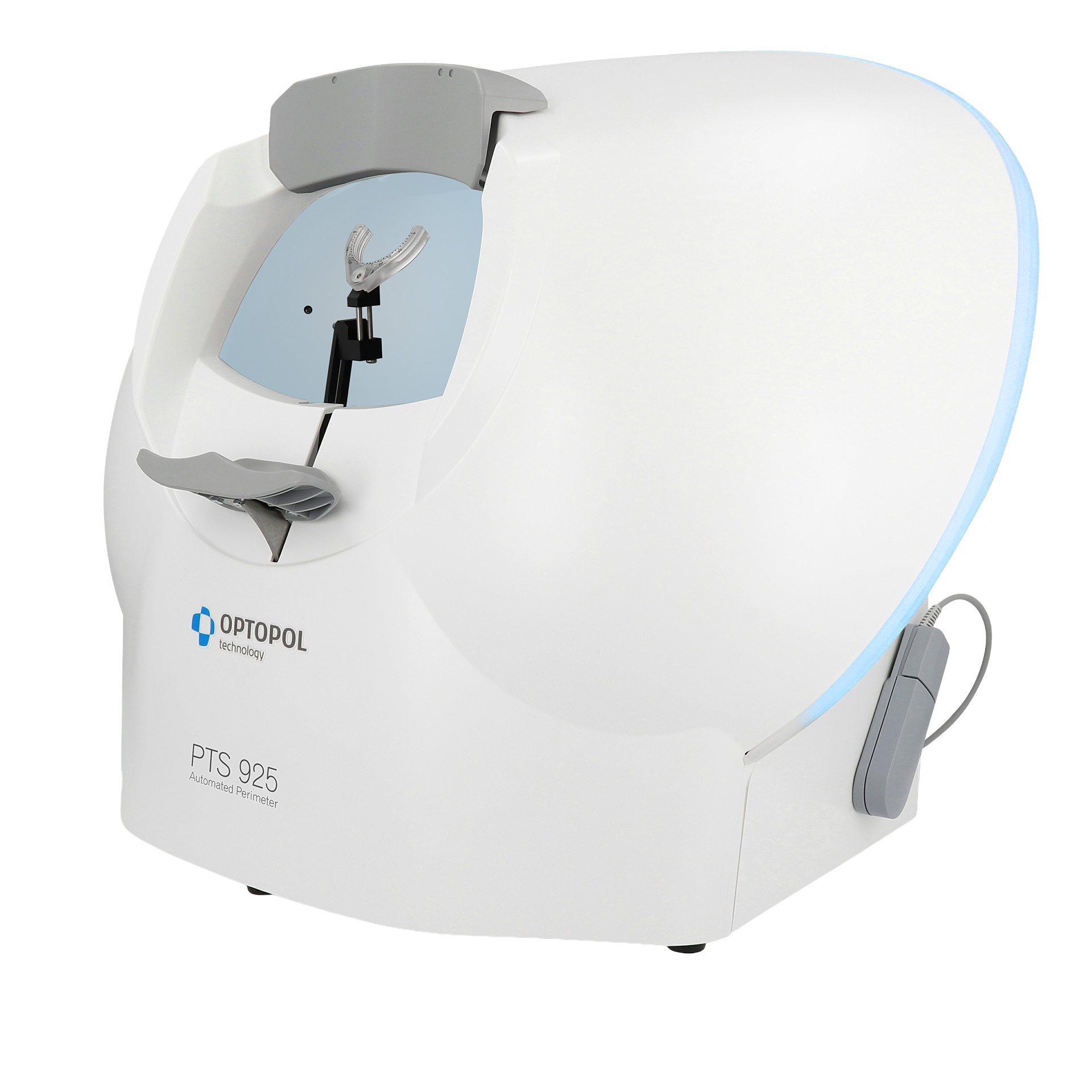

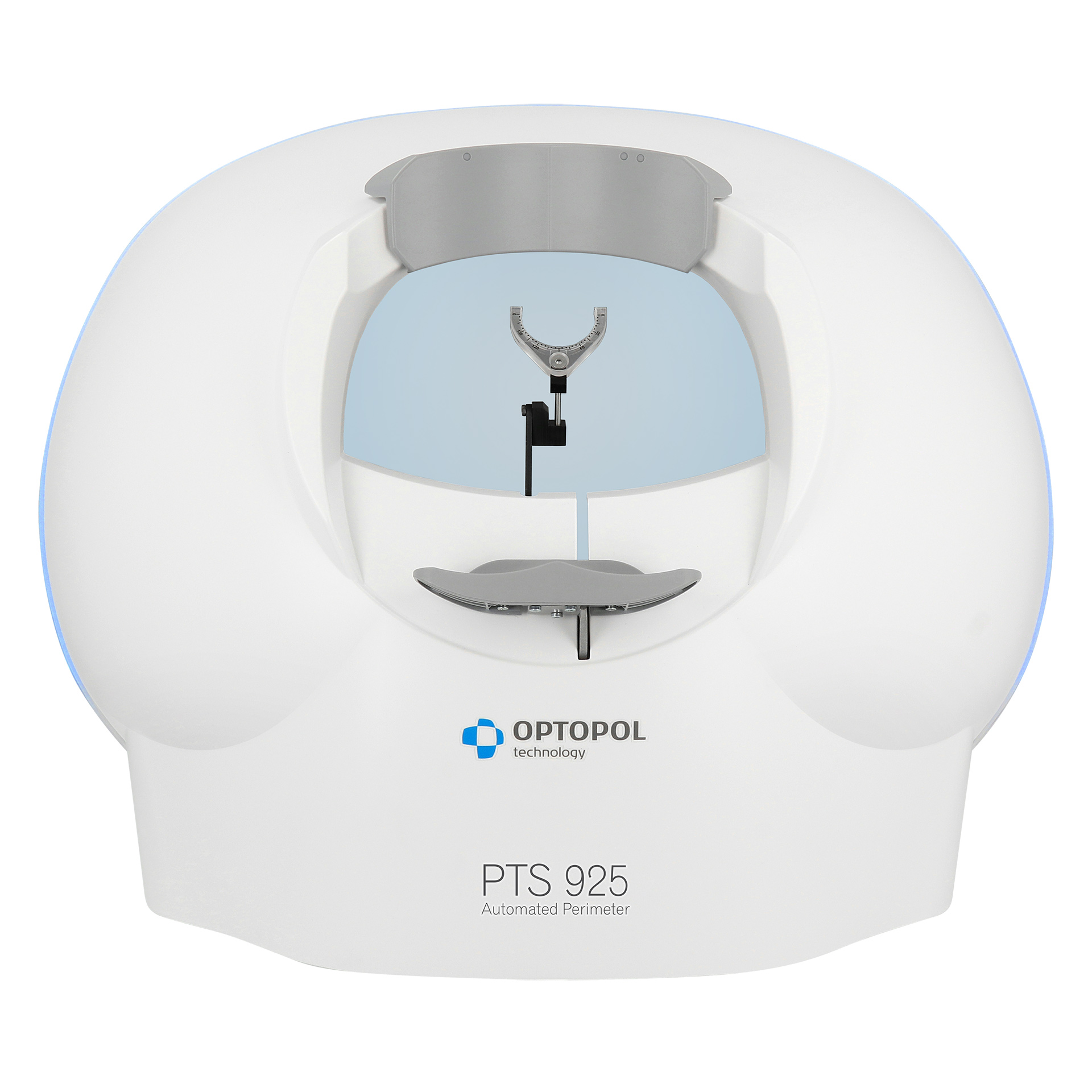

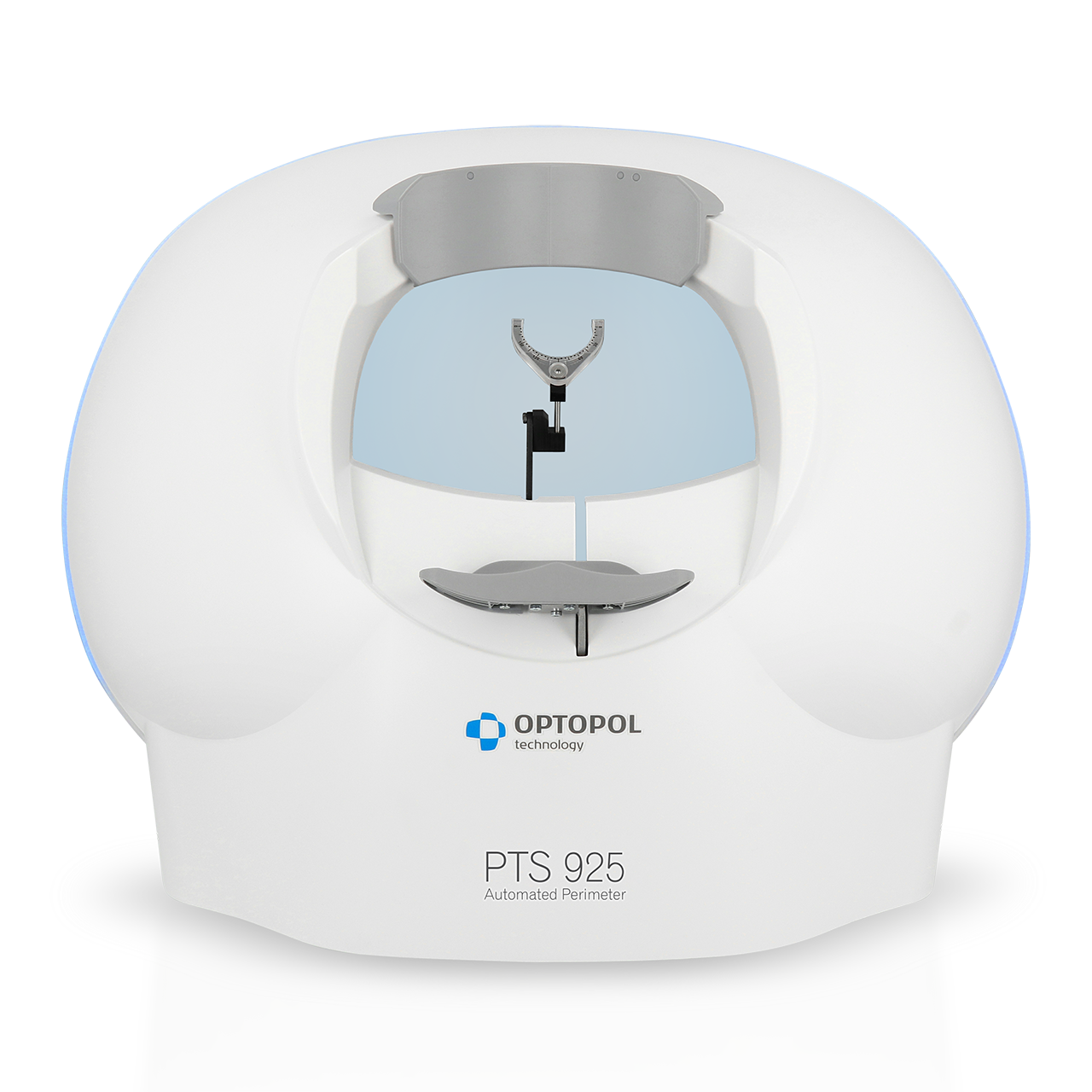

PTS 925

Small. Yet Mighty.

The PTS 925 is our compact perimeter that packs a punch. It provides everything you need in our smallest footprint.

Explore our Features

Fast Thresholding

Using ZETA™ thresholding algorithms, test your patients in under 3 minutes.

Eye Tracking
Monitor patient pupil movement during examination.
Blink Detection
Our software detects when the eye is closed, and will not present stimuli to the patient.

PTS 925

Head Tracking
Live monitoring and automated adjustments throughout exams.
DPA™ Defect Progression Analysis
Create a baseline and follow disease progression over time.
EyeSee™
In the review screen, click on any point during the exam to see the eye position.
Voice Guide
Voice messages assist operator and patient during the examination.

Image Gallery

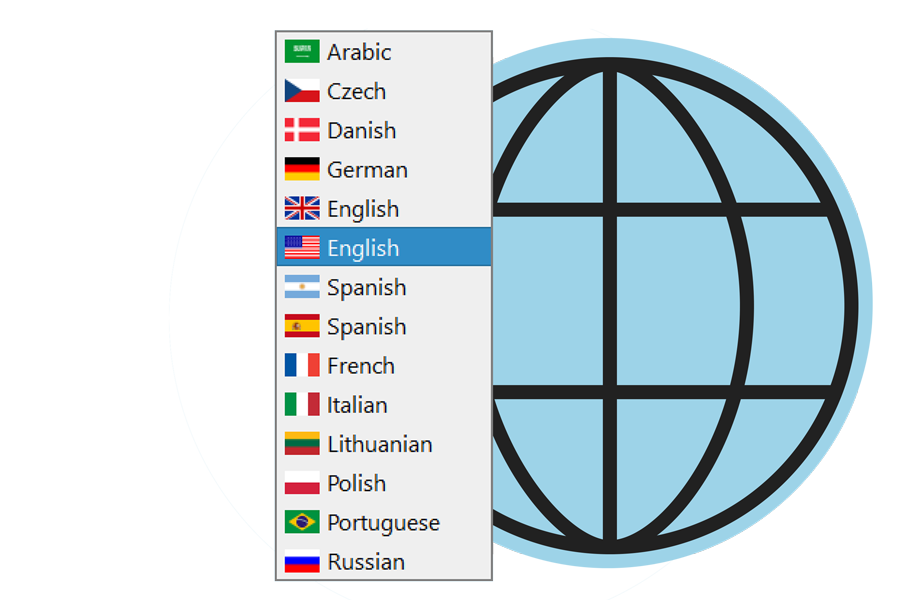

Voice Guide Instructions

Let our voice guide provide instructions for the patient during an exam. In 12 different languages.

  • English, Spanish, French, Italian
  • German, Polish, Czech, Danish
  • Arabic, Lithuanian, Portuguese, Russian

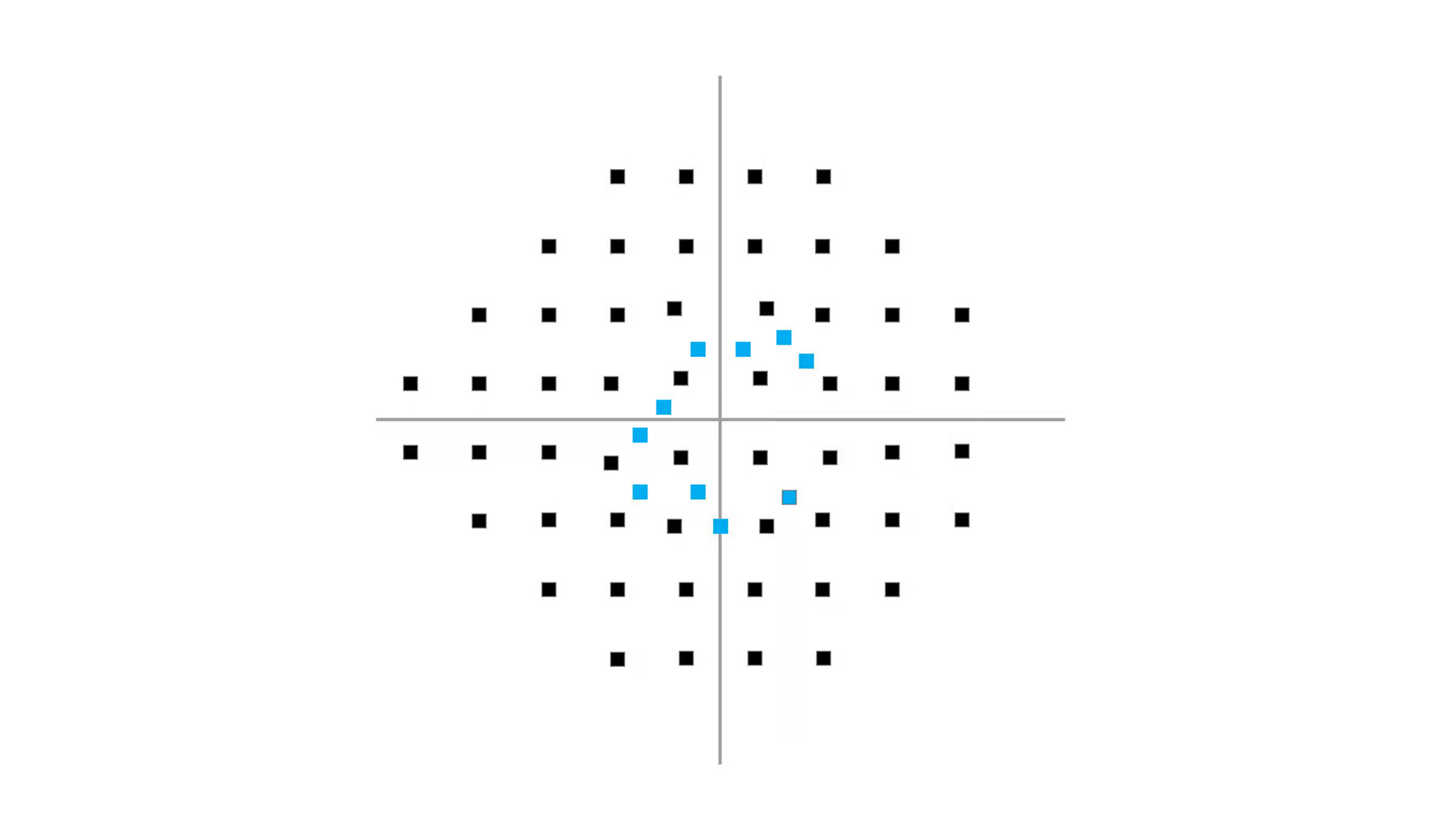

New 24-2C pattern now available.

Capture 10 additional central field locations with the new 24-2C pattern.

  • 24-2 field with additional 10 central points.
  • New points included may be used in a targeted approach where central defects are suspected.
  • Location of new points are derived from points commonly affected in glaucoma

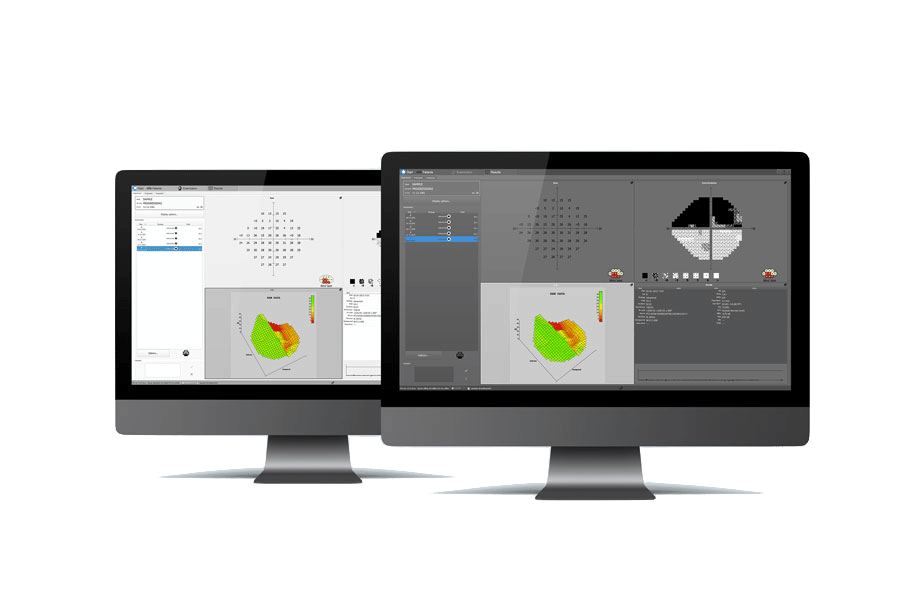

Light or Dark Mode?

Switch between dark and light view. Reduce eye strain during testing in a darkened room.

  • Easier to view in a darkened room.
  • Choose either the Dark or the Light screen mode depending on the ambient light.

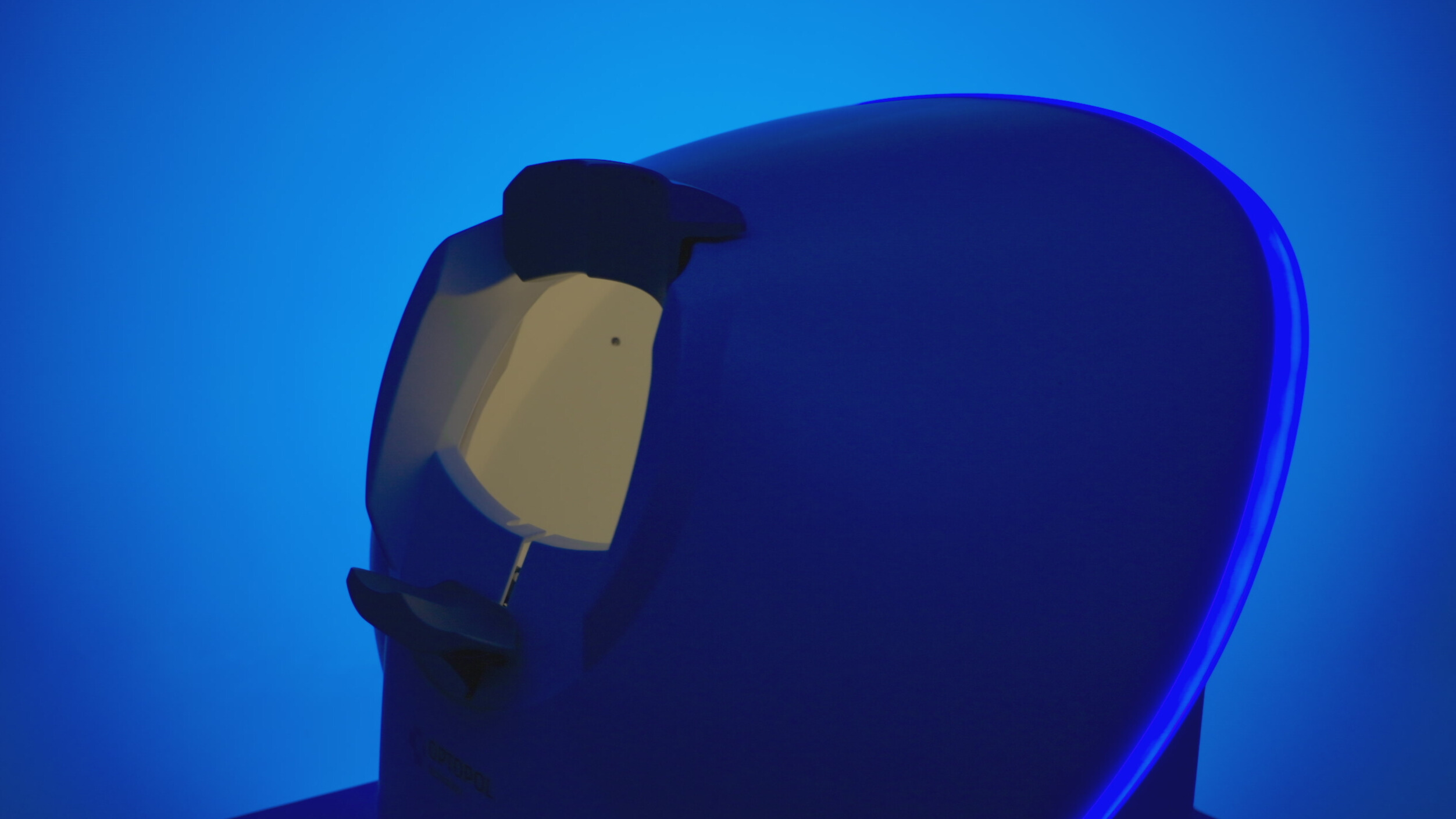

BluGlow™ light band technology

BluGlow™ light band provides a minimal ambient light to the darkened testing area, providing the operator and patient with the ability to navigate their surroundings.

Satellite office ready

Both our perimeters use the same great software. Perfect for seamless training across satellite offices.

  • PTS 2000 perfect for busy and main locations.
  • PTS 925 is great for a satellite or remote location.
  • Both units use the same software, no learning curve for new staff.
  • DICOM and Review Station SW included.

Revolutionary value

How can we beat the prices of our competitors?

  • Unique 2nd generation design allows us to reduce costs.
  • Long-lasting, reliable LED based technology.
  • No service contracts, EVER.

Technical Specifications

Examination bowl 300 mm radius, spherical, closed type, ventilated
Tested field range Superior – 40° (55° with fixation shift) Inferior – 40° (55° with fixation shift) Left to right – 100° (170° with fixation shift)
Testing techniques Static perimetry
Stimulus sizes  Goldmann III
Stimulus colors white
Background illumination White 10 cd/m2 (31,5 asb)
Maximum stimulus intensity 10000 asb
Fixation control Gaze tracking Blink monitoring Heijl/Krakau EyeSee™
Chinrest control Electrical up-down
Patient response time Set manually 0,1 to 9,9 s Adaptive to patient speed
Test fields Orthogonal test field patterns G0-2, 5-2, 10-2, 24-2, 24-2C, 30-2, 30-2C, Sup 44/64, Gandolfo
Test strategies Screening (Quantify defect, 3-zone, 2-zone) Threshold (Threshold, Fast Threshold, Advanced Threshold, Dynamic) ZETA™, ZETA™ Fast and ZETA™ Faster Special (BSV, Flicker) Esterman Monocular Test Esterman Binocular Test
Analysis Single field analysis Result comparison analysis DPA™ Defect Progression Analysis Statistical package
Connectivity DICOM Storage SCU DICOM MWL SCU GDT, TXT, CMDL Networking REVO Structure & Function Interface
Device interface USB 2.0
Dimensions mm (HxWxD) 410 x 568 x 410, 9 kg
Operating Voltage 100-120 V AC 50-60 Hz or 220-240 V AC 50-60 Hz
Power consumption 30 W
