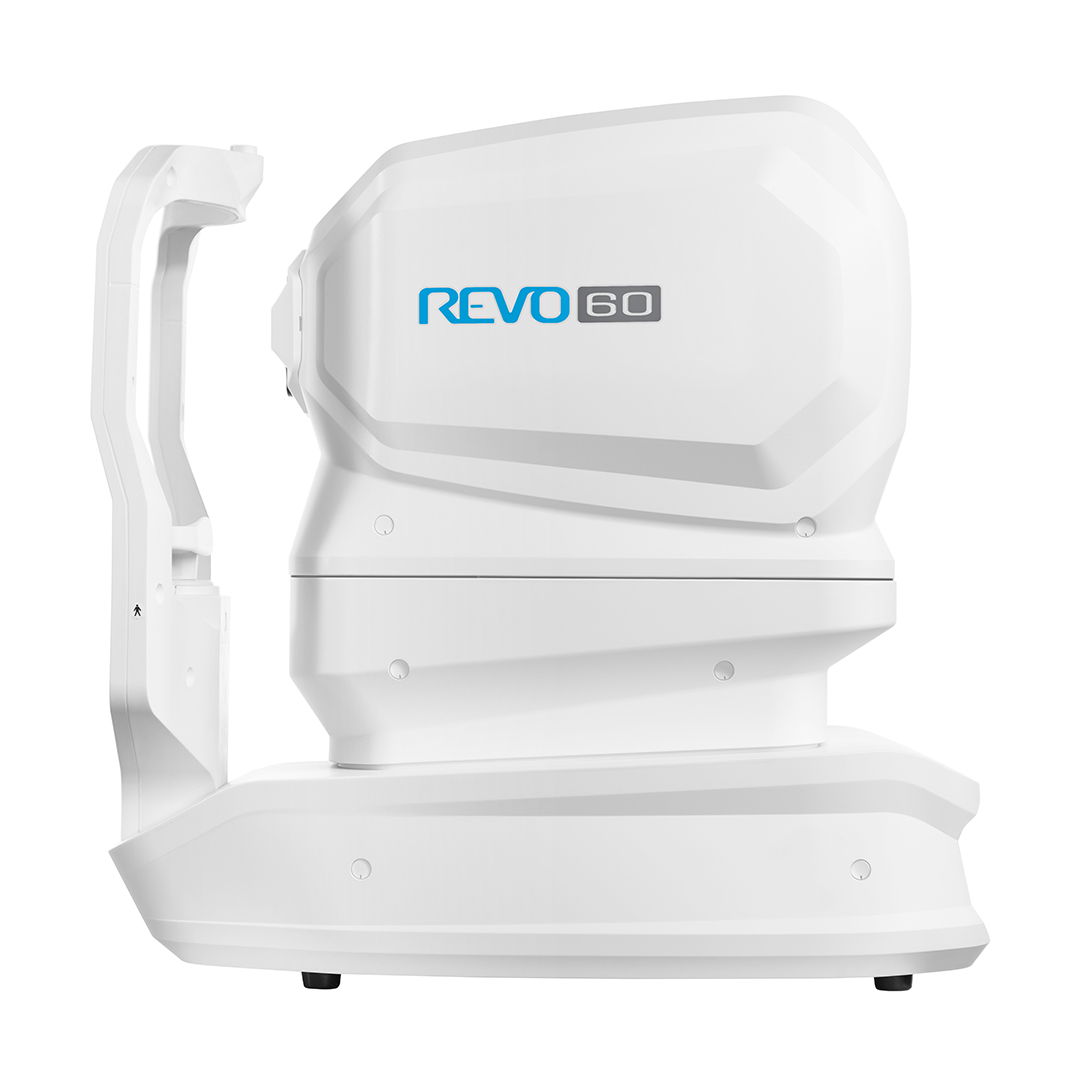

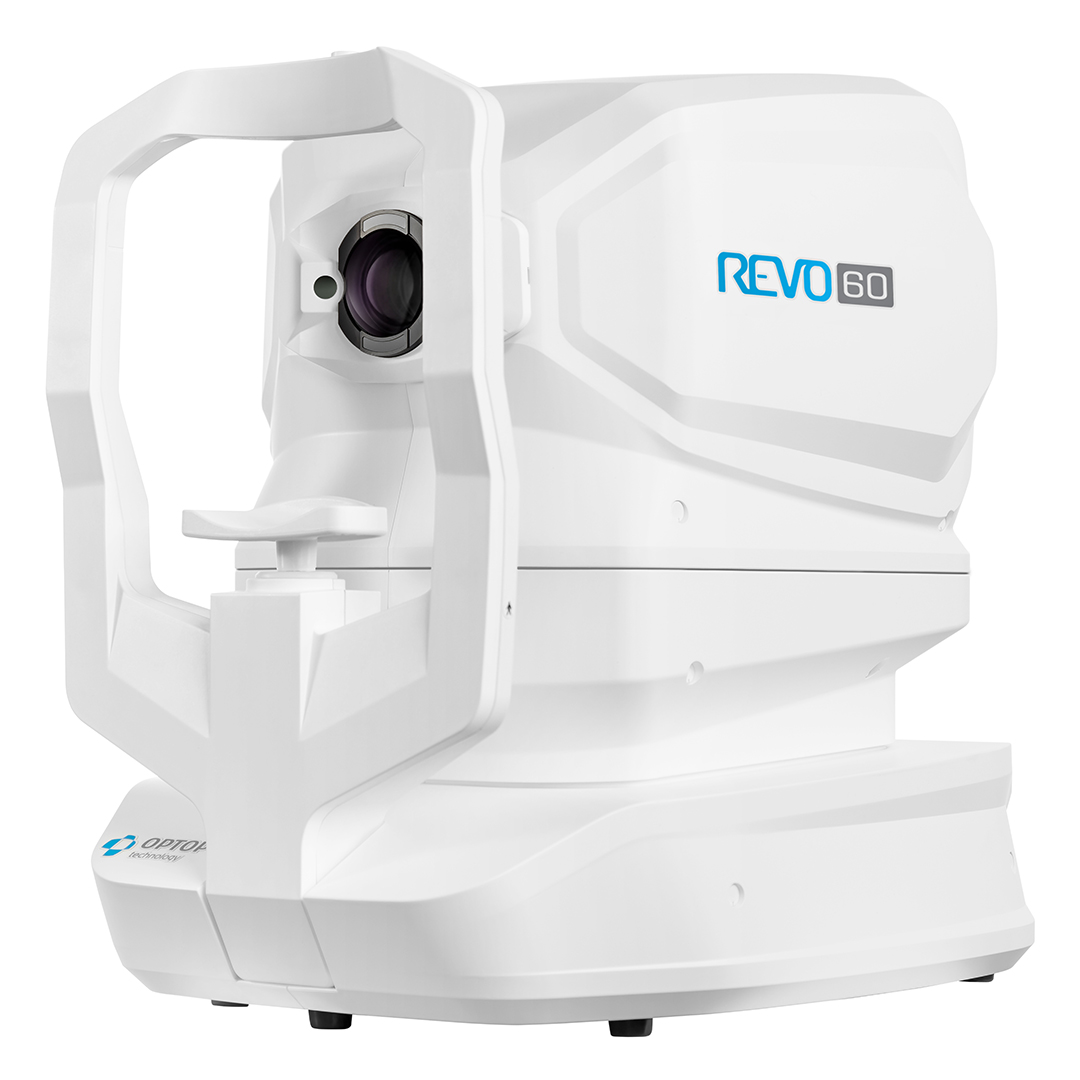

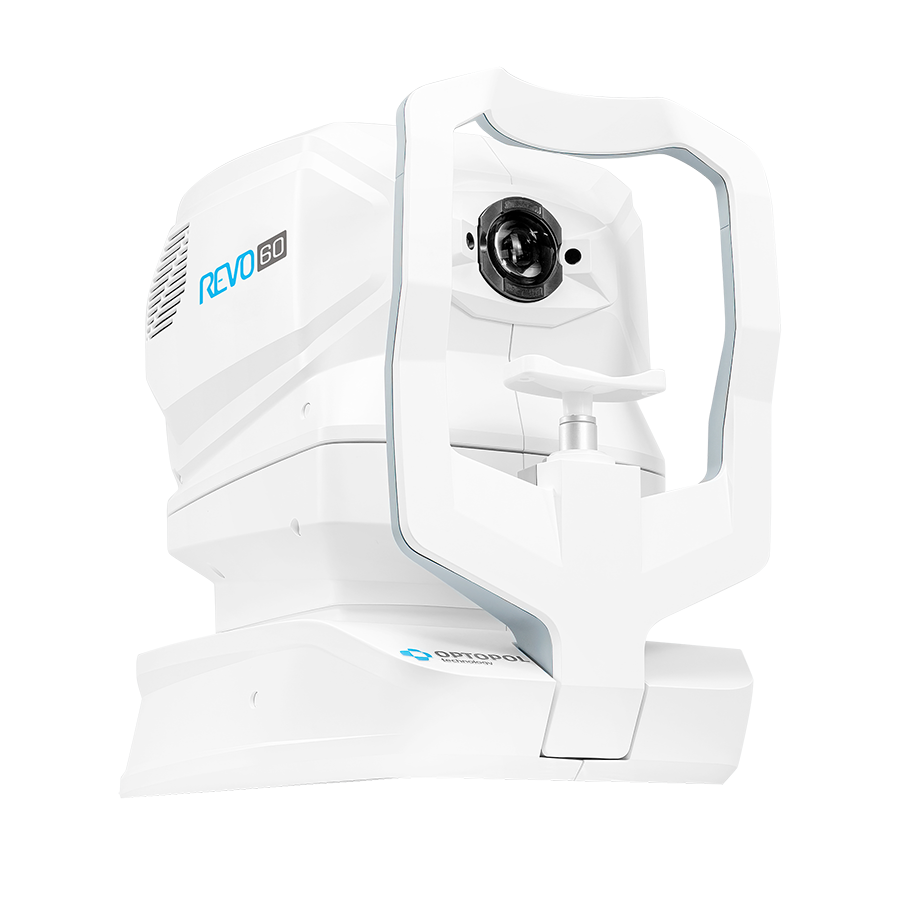

REVO 60
Spectral-Domain OCT
OCT made simple.
Take your OCT to the next level
REVO 60
Full range
With scans presenting New Extended Depth™ software, based on our Full Range technology, this new imaging mode provides scans of increased depth for reliable and convenient observation of challenging cases. The Full Range mode is perfect for diagnosing even highly myopic patients.
Custom Scan Protocols
Save time and never miss a scan. Combine any scan type into a pre-set group. Choose a group of scans and set the order, the REVO will do the rest.
AI DeNoise
An advanced artificial intelligence (AI) algorithm removes noise from the tomogram for the highest image quality.
Structure&Function (S+F)
Comprehensive glaucoma solution that combines REVO OCT and PTS Visual Field results. S+F takes the diagnostic approach of the Hood report.Our S+F report allows clinicians to understand the relationship between structural glaucoma damage and the functional impact on the patient’s field of vision. This provides a quick and comprehensive single-page report for glaucoma management.
Glaucoma Tool Kit
Comprehensive glaucoma analytical tools for quantification of the Nerve Fiber Layer and Ganglion Cell Layer. The Disc Damage Likelihood Scale enables clinicians to precisely diagnose and monitor glaucoma for Optic Nerve Head analysis.
Progression Analysis
Quickly view a chronological set of exams for analysis of changes in morphology, quantified progression maps, and progression trends.
Create your dream all-in-one OCT
Full Auto SD-OCT
OCT-A Angiography*
This non-invasive dye free technique enables the visualization of the microvasculature of the retina.
T-OCT™ Topography*
Detect corneal abnormalities with this pioneering way to capture detailed corneal curvature maps.
B-OCT® Biometry*
Perform automated measurements of the entire ocular structure and combine a biometer into your OCT.
IOL Calculation**
Keep your library up to date by calculating IOL implant parameters using the latest IOL database standard IOLCon.org.
* Available as an optional software module add-on function
** Requires B-OCT® Biometry module
Spectral-Domain OCT
Shaping the Future of OCT.
Since introducing the first Spectral Domain OCT technology in 2005, OPTOPOL has been driving innovation in eye imaging. With years of experience behind us, we’re dedicated to delivering outstanding results for both patients and eye care professionals. Enjoy the perfect balance of ultra-high-quality scans and an intuitive, easy-to-use interface.
- Posterior & Anterior Scans – comprehensive imaging capabilities in one device
- Combine one-touch exams with preset scan combinations for streamlined workflows.
- Progression analysis available for detailed analysis over time.
Add-On Software Modules – boost the efficiency and versatility of your OCT system.
Anterior Segment Imaging
Comprehensive anterior segment imaging enables detailed visualization and assessment of corneal and anterior eye structures within the same OCT workflow — without the need for additional hardware or adapters.
The system supports high-resolution imaging and quantitative analysis of the anterior segment, providing valuable data for diagnosis, treatment planning, and follow-up.
Anterior Chamber
Dedicated anterior segment protocols, combined with Full Range technology, enable detailed assessment of the anterior chamber, including visualization of the iridocorneal angle and measurement of anterior chamber depth.
Cornea and Epithelium
AI-supported analysis of the anterior segment enables detailed evaluation of corneal structures, including epithelium and pachymetry.
Presentation of results for both eyes supports quick and precise assessment, while epithelial and pachymetry maps are included as part of the standard package.
Optional Software Modules
OCT Angiography
This non-invasive dye free technique enables the visualization of the microvasculature of the retina.
OCT Angiography provides an alternative to the traditional fluorescein method. Although OCT-A will not completely replace FA imaging, it is a quick and non-invasive tool. The software allows clinicians to observe, track, and compare changes in the microvasculature of the retina in both eyes.
OCT Biometry
B-OCT® is an excellent tool for any clinician who manages myopia control or performs cataract surgery. Biometry OCT provides a complete set of ocular parameters: Axial Length, Central Cornea Thickness, Anterior Chamber Depth, Lens Thickness, Pupil size, and White to White.
High Myopia
The Myopia Forecast module opens progression of the ocular structure parameters according to trends over population mode. Usage reference based on research from multiple universities along with environmental factors allow the monitoring of changes from childhood to adolescence.
The REVO offers an exclusive selection of reference data based on different studies over different time frames and demographics. Reference data can be selected from the NICER San Diez or Tideman studies.
IOL Calculator
OL formulas allow the user to calculate IOL implant parameters. Our systems now support the latest IOL data base standard IOLCon.org so that you can always keep your library up-to-date.
IOL Formulas*:
- Hoffer® Q,
- Holladay I,
- Haigis,
- Theoretical T,
- Regression II.
New OCT Topography *
OCT Topography provides detailed corneal mapping based on high-resolution OCT data, enabling precise evaluation of corneal thickness distribution and structural profile.
The updated Topography algorithm (T2) enhances corneal surface reconstruction through improved modeling, increasing resistance to noise and improving the reliability of computed parameters. A higher number of B-scans supports more accurate data acquisition and analysis.
T-OCT™ is excellent when paired with the B-OCT® module for IOL surgery.
* - An optional software module
Additional Scan Programs
Retina
- 3D
- Radial (HD)
- Raster (HD)
- Retina Cross Scan
- B-scan (HD)
Disc
- 3D
- Radial (HD)
- B-scan (HD)
Wide Field
- 3D
- Raster (HD)
- Full Range B-scan
Anterior
- 3D
- Radial (HD)
- Raster (HD)
- Anterior Cross Scan
- Anterior Line Scan
- Anterior Chamber Full
- Full Range Radial
- Anterior Chamber Full
- Full Range B-scan
Technical Specifications
| Technology | Spectral Domain OCT |
| Scanning speed | 60 000 A-scans per second |
| Light source | SLED Wavelength 850 nm |
| Bandwidth | 50 nm half bandwidth |
| Axial resolution | 2.8 μm digital, 5 μm in tissue |
| Transverse resolution | 12 μm, typical 18 μm |
| Overall scan depth | 2.8 mm / ~6 mm in Full Range mode |
| Scan range | Posterior 5–15 mm, Angio 3–6 mm, Anterior 3–18 mm |
| Scan program | 3D, Angio¹, Full Range Radial, Full Range B-scan, Radial, B-scan, Raster, Cross, TOPO¹, Biometry AL¹ |
| Fundus image | Live Fundus Reconstruction |
| Alignment method | Fully automatic, Automatic, Manual |
| Retina analysis | Retina thickness, Inner Retinal thickness, Outer Retinal thickness, RNFL+GCL+IPL thickness, GCL+IPL thickness, RNFL thickness, RPE deformation, MZ/EZ-RPE thickness |
| Angiography OCT¹ | Vitreous, Retina, Choroid, Superficial Plexus, RPCP, Deep Plexus, Outer Retina, Choriocapilaries, Depth Coded, SVC, DVC, ICP, DCP, Custom, Enface, FAZ, VFA, NFA, Quantification: Vessel Area Density, Skeleton Area Density, Thickness map |
| Angiography mosaic | Acquisition method: Auto, Manual Mosaic modes: 10 mm x 6 mm, Manual up to 12 images |
| Glaucoma analysis | RNFL, ONH morphology, DDLS, OU and Hemisphere asymmetry, Ganglion analysis as RNFL+GCL+IPL and GCL+IPL, Structure + Function² |
| Anterior | Pachymetry, Epithelium map, Stroma map, AIOP, Angle Assessment, AOD 500/750, TISA 500/750 |
| Anterior (no lens/adapter required) | Anterior Chamber Radial, Anterior Chamber B-scan, Angle to Angle view |
| Biometry OCT¹ | AL, CCT, ACD, LT, P, WTW |
| IOL Calculator³ | Hoffer Q, Holladay I, Haigis, Theoretical T, Regression II |
| Corneal Topography Map¹ | Axial [Anterior, Posterior], Refractive Power [Kerato, Anterior, Posterior, Total], Net Map, Axial True Net, Equivalent Keratometer, Elevation [Anterior, Posterior], Height, KPI (Keratoconus Prediction Index) |
| Connectivity | DICOM Storage SCU, DICOM MWL SCU, CMDL, Networking |
| Min. pupil size | 1.7 mm |
| Focus adjustment range | -25D to +25D |
| Dimensions (L×W×H) / Weight | 479 × 367 × 493 mm / 29 kg |
| Fixation target | OLED display (adjustable shape and position), External fixation arm |
| Power supply / Consumption | 100–240 V, 50/60 Hz / 90–110 VA |
| ¹ Optional software module ² Via connection with PTS software version 3.4 or higher ³ Biometry module and separate IOL Calculator license required | |
