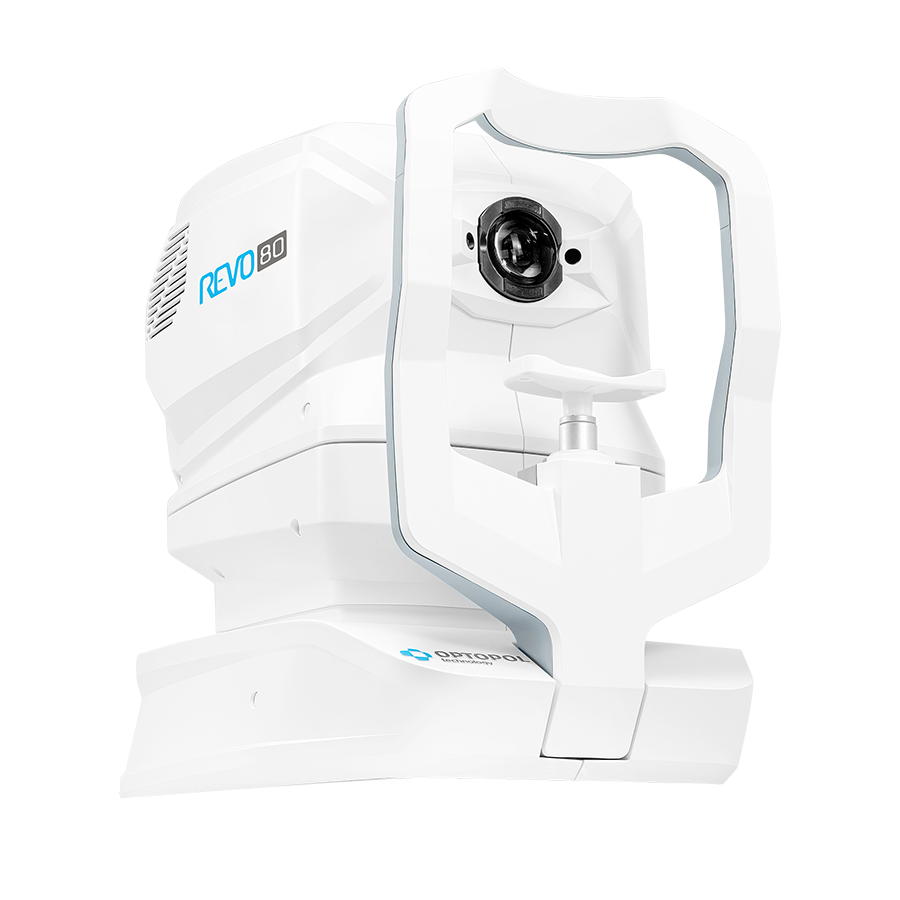

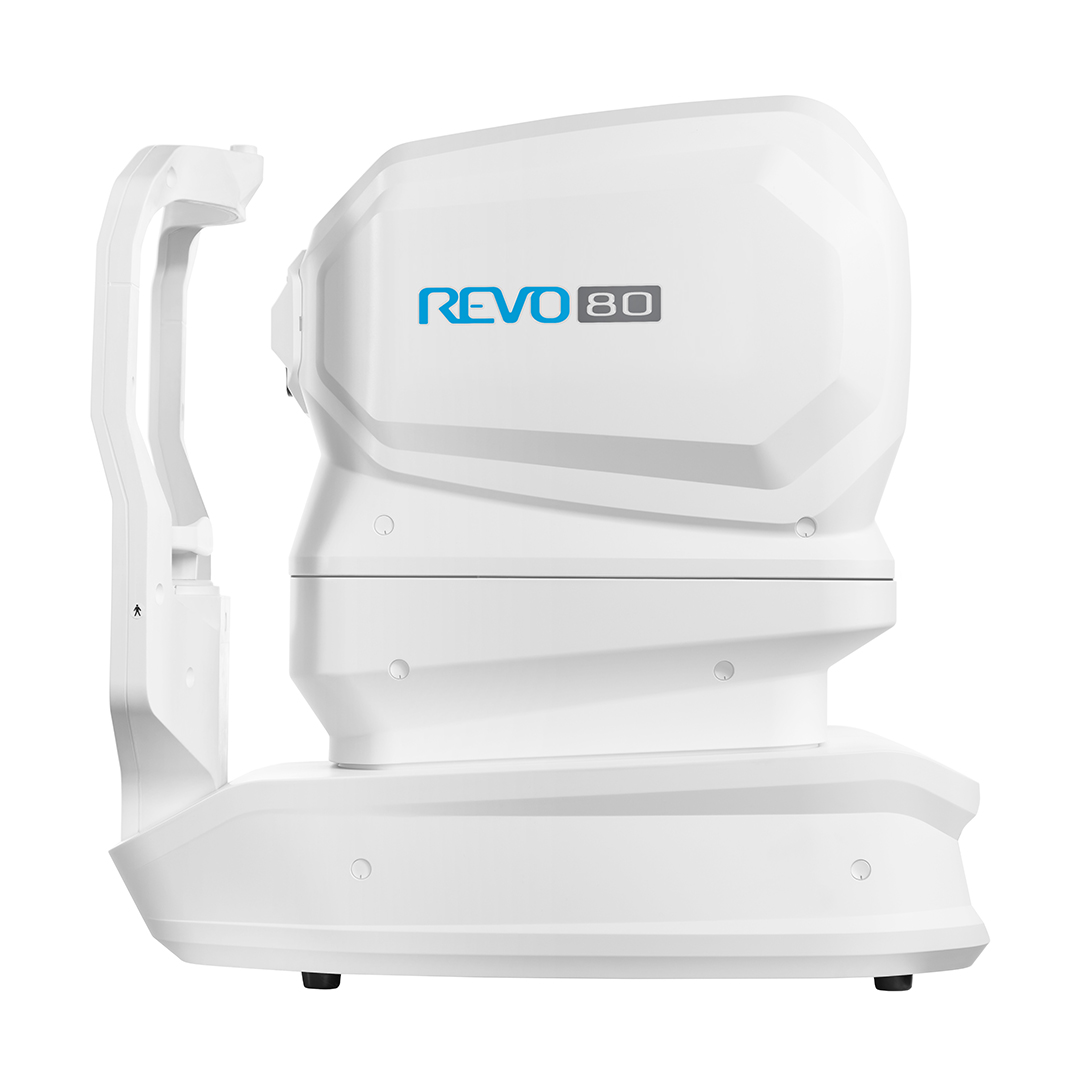

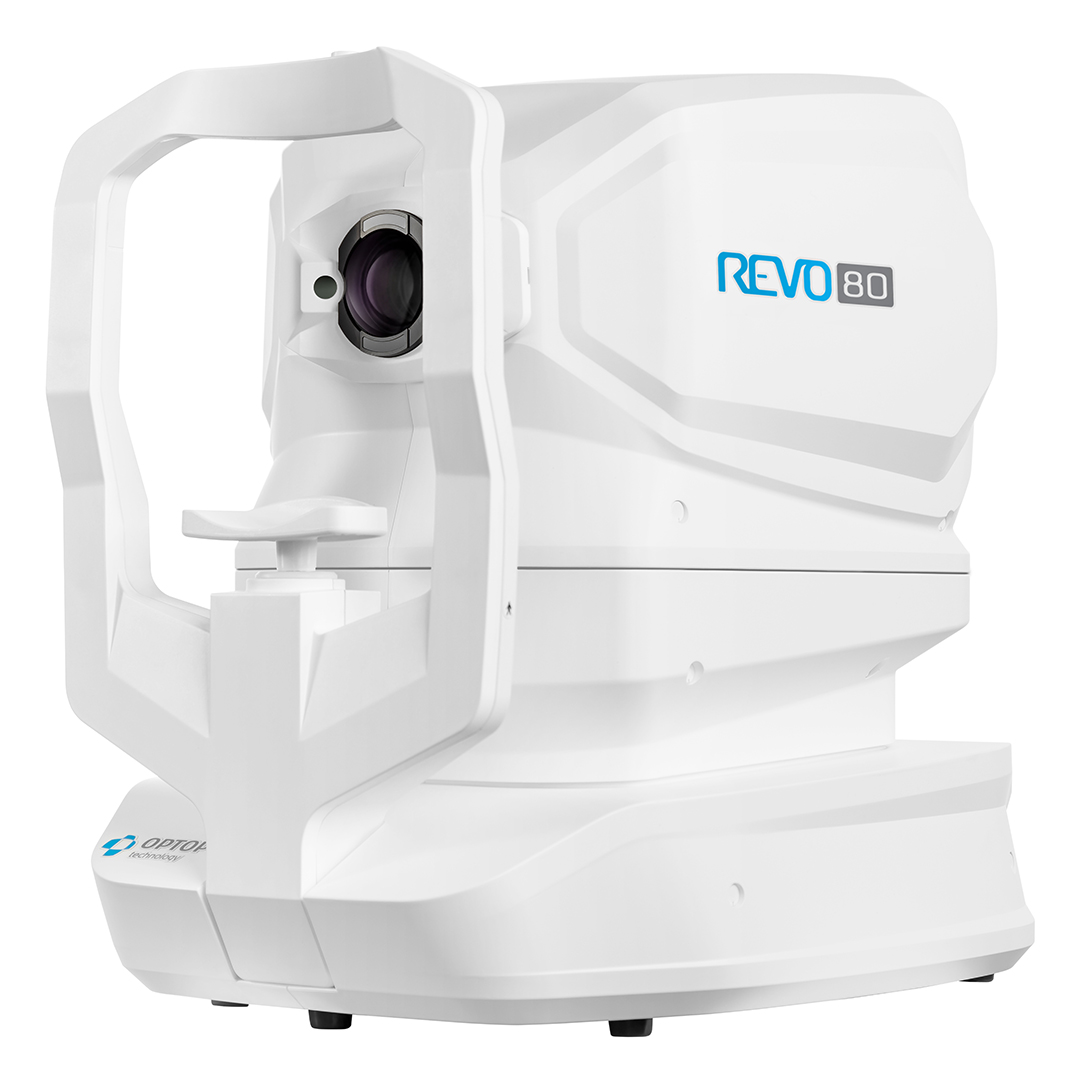

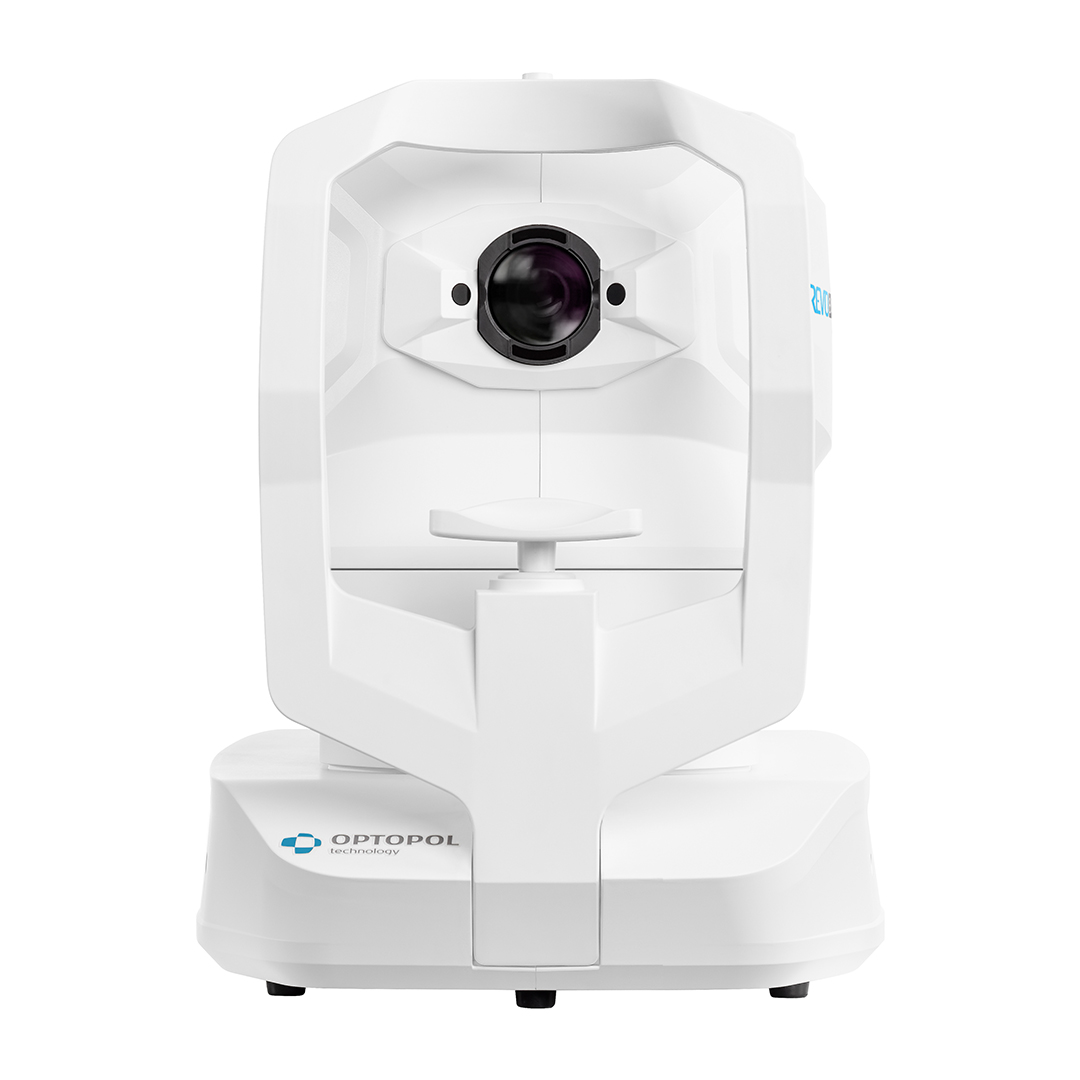

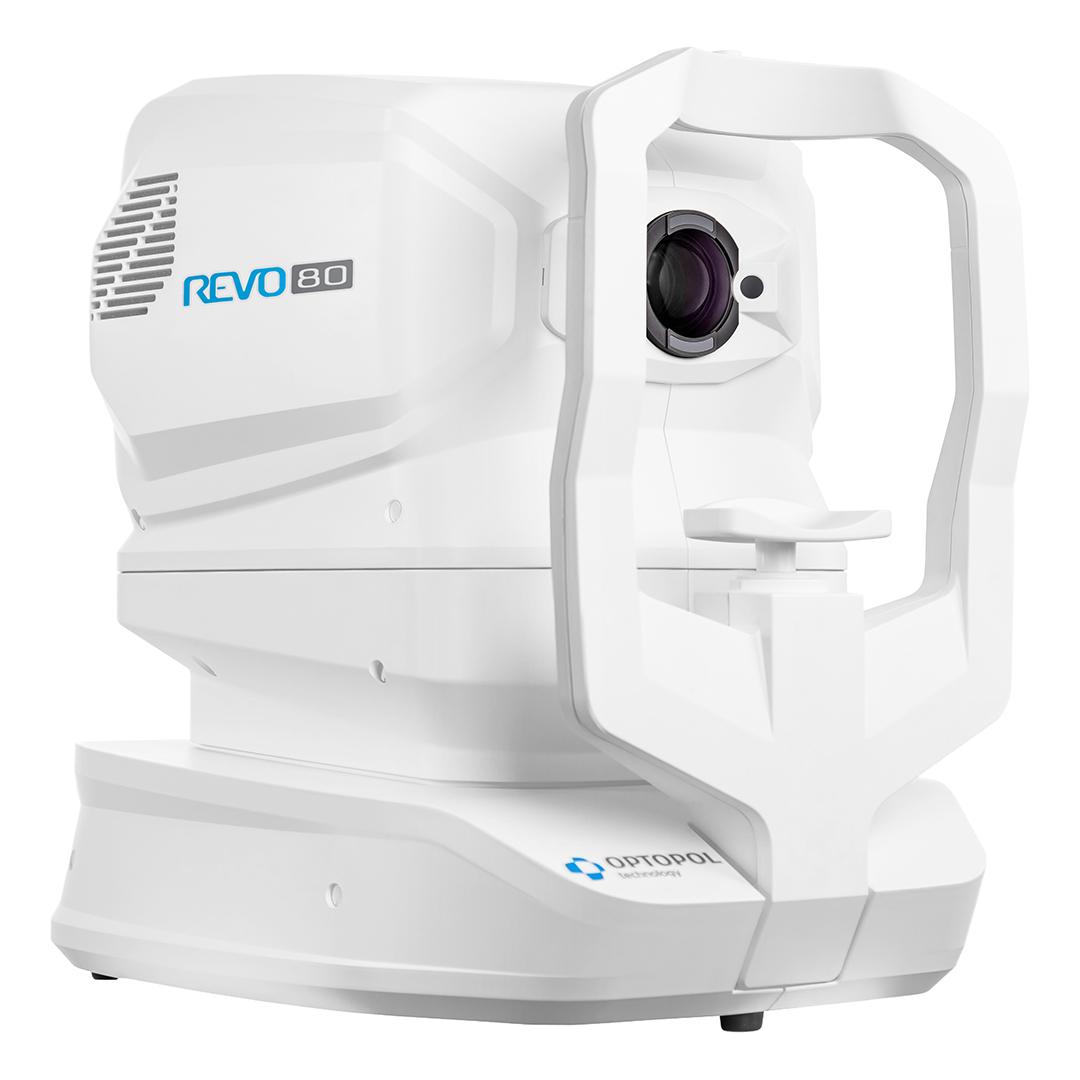

Our supreme experience in Spectral Domain OCT allows us to provide the market REVO 80 with redesign optics. The updated REVO 80 meets all demands in daily routine practice.

OCT made simple as never before. All you have to do is to position the patient and press the START button to acquire examinations of both eyes. The device will make examination independently. Small system footprint, various operator and patient positions allow to install REVO 80 even in the smallest examination rooms. Variety of review and analysis tools gives the operator a choice of using it as a screening or as an advanced diagnostic device. The noise reduction technology provides the finest details proven to be important for early disease detection.

New Model 80 000 A-scan/seconds

The new REVO model with  80 000 A-scan/sec scanning speed reduce scan time and brings benefits for both clinicians and patients by reducing errors often caused by involuntary eye movements. Higher sensitivity spectrometer allows to visualize finer details.

AI denoise
Improved tomogram quality powered by Artificial Intelligence. Advanced AI algorithms enhance the quality of a single tomogram to the level of an averaged tomogram obtained through multiple scanning.

RAW Tomogram

AiDenoise Tomogram
Full range
New Extended DepthTM Retina imaging, based on our Full Range technology, provides scans of increased depth for reliable and convenient observation of challenging cases. With scans presenting plenty of depth, this new imaging mode is perfect for diagnosing even highly myopic patients.

Single 3D Retina examination is enough to perform both Retina and Glaucoma analysis based on retinal scans. Software automatically recognizes 8 retina layers allowing a moreprecise diagnosis and mapping of any changes in the patient’s retina condition.

Precise registration
The software can track 3D scans and register them to the OCT baseline exam by recognizing patterns in the shape of blood vessels. Active tracking and post-processing point-to-point registration allows the user to precisely see and track the changes in retina morphology in Comparison and Progression analysis.

Comparison view allows in easy and convince way to review results from two visits. The view is available for most of the scan programs.

High density of standard 3D scan allows the operator to precisely track the disease progression. The operator can analyze changes in morphology, quantified progression maps and evaluate the progression trends.
Progression Morphology  Progression Quantification
FOLLOW UP Progression Morphology	  FOLLOW UP Progression Quantification

Comprehensive glaucoma analytical tools for quantification of the Nerve Fiber Layer, Ganglion layer and Optic Head with DDLS allow for the precise diagnosis and monitoring of glaucoma over time.
With the golden standard 14 optic nerve parameters and a new Rim to Disc and Rim Absence the description of ONH condition is quick and precise.
Advanced view which provides combined information from Retina and Disc scan to integrate details of the Ganglion cells, RNFL, ONH in a wide field perspective for comprehensive analysis.

Advance Retina & ONH

ONH Single
GLAUCOMA Advance Retina & ONH  GLAUCOMA ONH Single

Asymmetry Analysis of Ganglion layers between hemi-spheres and between eyes allows easier identification and detection of glaucoma in early stages and in non-typical patients.

Ganglion Both

Ganglion Progression
GLAUCOMA Ganglion Both  GLAUCOMA Ganglion Progression

Implemented the DDLS  - Disc Damage Likelihood Scale which use 3 separate classification for small, average and large discs. It supports the practitioners in a quick and precise evaluation of the patient’s glaucomatous disc damages.

ONH Both

ONH Progression

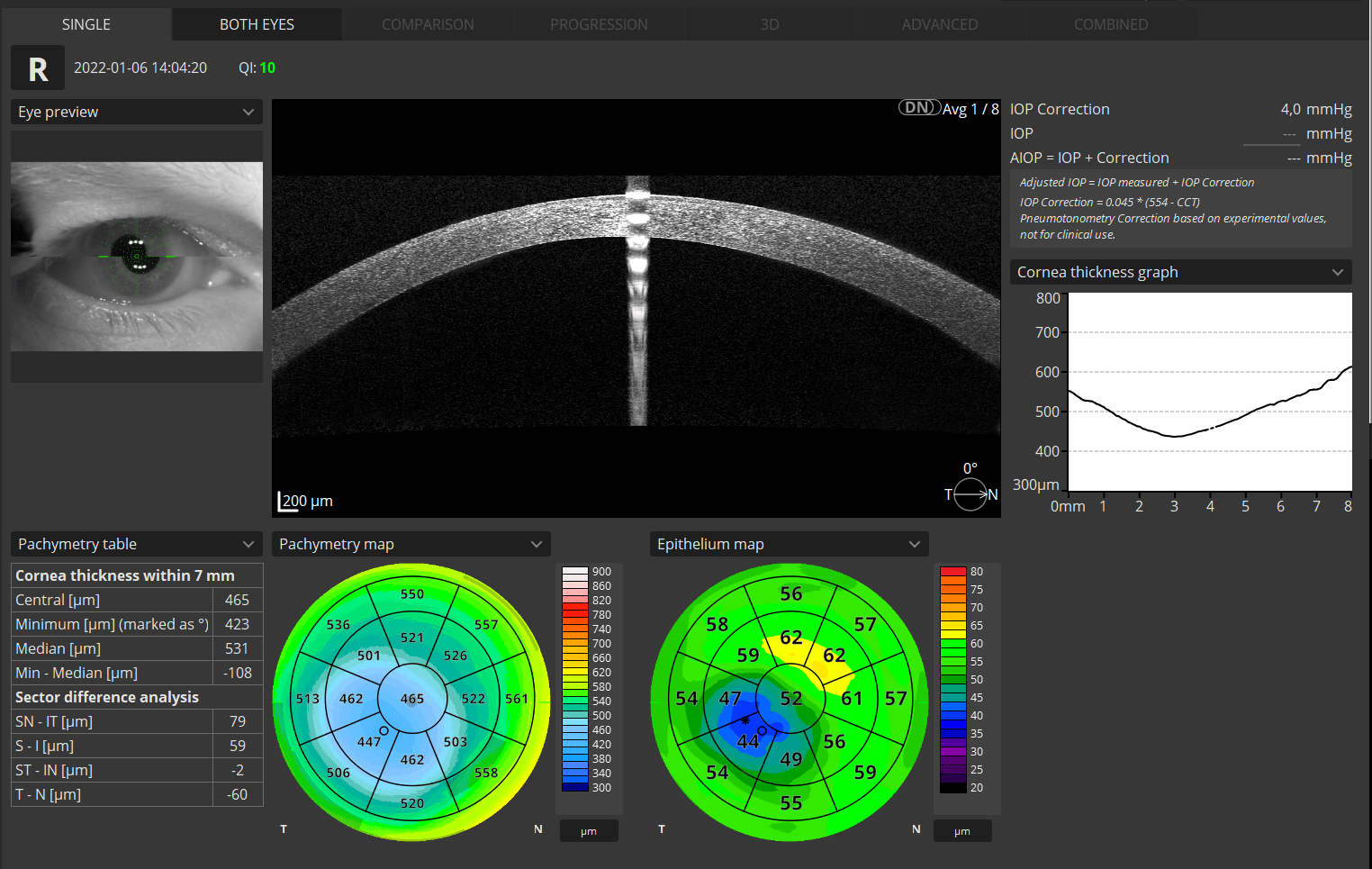

To eliminate common problem with the understanding of the patient’s IOP pachymetry module provides IOP Correction value.  With the implemented Adjusted IOP formula you can quickly and precisely understand the measured IOP value.
As the Pachymetry and Anterior Chamber Angle Verification require no additional attachments, the predefined Glaucoma protocol, which consists of Retina, Disc and Anterior scans, can be done automatically to reduce patient chair time.

Closing angle

Anterior Radial Single View Cornea
Closing angle  Anterior single view
Full Range Anterior Chamber single view
  * Images curtesy of Edward Wylęgała, MD, PhD

STRUCTURE & FUNCTION - Combined OCT and VF results analysis
Invaluable combination of information about the functional quality of vision with comprehensive data on retinal Ganglion Cells, RNFL and Optic Nerve Head for both eyes on a single report page. The S&F report contains the following:
  • VF sensitivity results (24-2/30-2 or 10-2)
  • Total and Pattern Deviation probability graphs for VF results
  • Reliability and Global indices for VF results
  • Combined map of Structure & Function
  • Ganglion cell analysis (GCL+IPL or NFL+GCL+IPL)
  • ONH and NFL analysis including charts and comparison tables
  • NFL Asymmetry Plot
The S&F report compares in a natural way the anatomical relationship between VF and RNFL/Ganglion maps.
Structure & Function
STRUCTURE & FUNCTION - Combined OCT and VF results analysis
S+F provides a quick and comprehensive single page report for glaucoma management.

Built-in anterior lens allows the user to perform the imaging of the anterior segment without installing additional lens or forehead adapter. Now you can display the whole anterior segment or focus on a small area to bring out the details of the image. Anterior Chamber exam with a fast view of the whole Anterior Chamber make the evaluation of gonioscopy situation and the verification of cataract lens easier and faster.
Full Range Anterior Chamber Full Range Anterior Chamber with Lens
Full Range Lens

See incredible details of a selected area of the anterior segment.

Cornea single

Cornea both
ANTERIOR Cornea single   ANTERIOR Cornea both
Cornea Comparison Cornea Progression
Anterior Cornea Comparison Anterior Cornea Progression

A proficient networking solution increases productivity and an enhanced patient experience. It allows you to view and manage multiple examinations from review stations in your practice. Effortlessly helping to facilitate patient education by allowing you to interactively show examination results to patients. Every practice will have different requirements which we can provide by tailoring a bespoke service. There is no additional charge for the server module.

Store, exchange, and transmit results through DICOM gateway to the hospital network.

REVO 80 000 A-scan/seconds is available now with the Angiography module.
OCT ANGIOGRAPHY is optional software module to purchase

This module allows visualization of the retinal microvasculature. Angiography SOCT is a non-invasive, dye-free technique providing 3D image of retinal blood circulation.
Software allows to observe, track and compare changes in the microvasculature of the retina in both eyes.
Standard Single View Detailed Single View
OCT Angiography Standard Single View	  OCT Angiography Detailed Single View

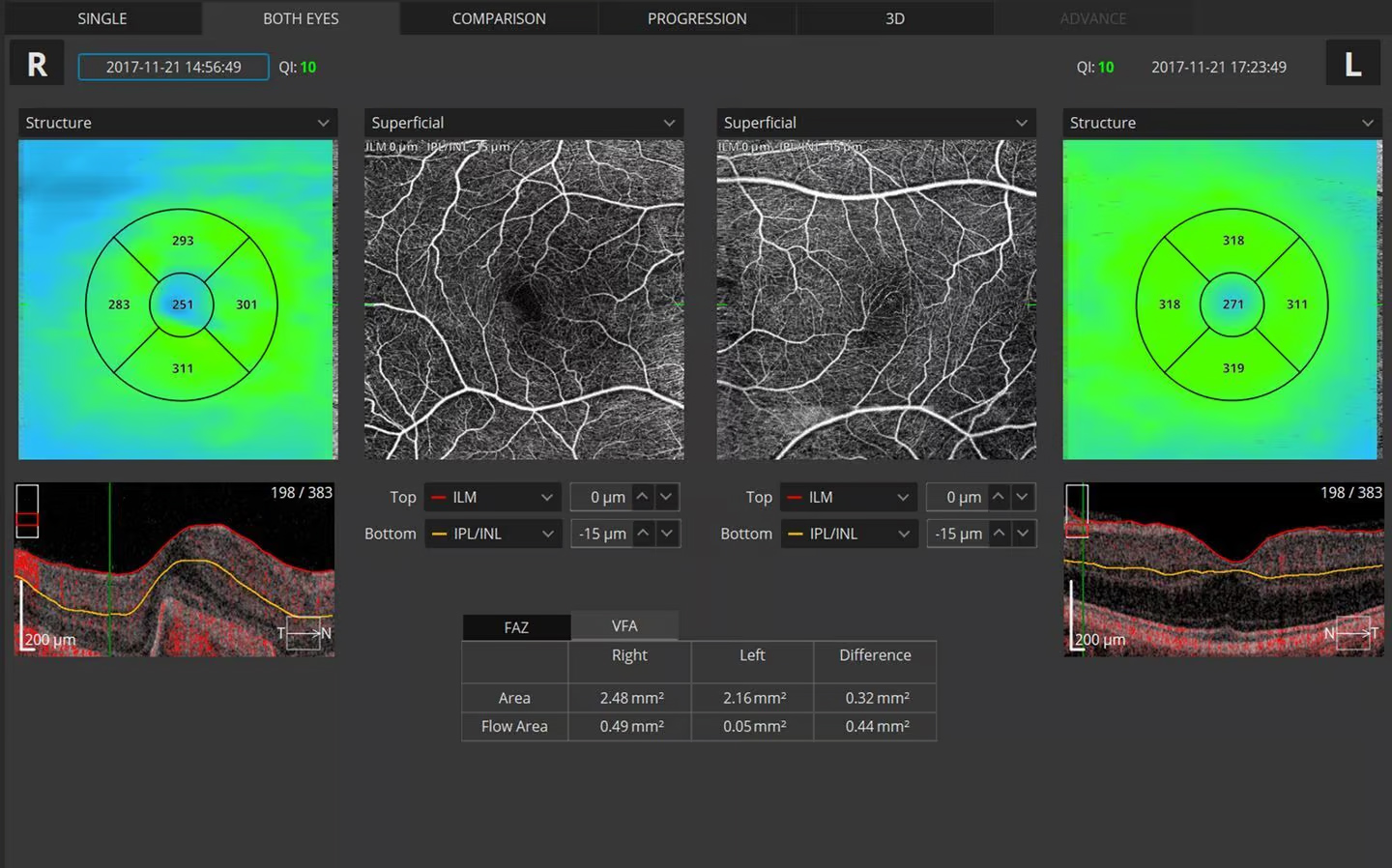

Both View
OCT Angiography Both View
Comparison View Progression View
OCT Angiography Comparison View OCT Angiography Progression View


The quantification tool provides quantification of the vasculature in the whole analyzed area together with values in specific zones and sectors. Thanks to the heat map of the analyzed vasculature the evaluation of vascular structure conditions is much faster. The choice of the quantification method increases the sensitivity of analyses for specific deseases.

Available quantification methods:
  • Vessel Area Density - it is defined as the total area of perfused vasculature per unit area in a region of measurement.
  • Skeleton Area Density - it is defined as the total area of skeletonized vasculature per unit area in a region of measurement.
Quantification is available for a specific layer in Angio OCT exam:
  • Retina: Superficial Plexus and Deep Plexus
  • Disc: RPC - Radial Peripapillary Capillary
Quantification Skeleton Density Map  Quantification Vessel Density Map
Skeleton Density Map Vessel Density Map

FAZ – Foveal Avascular Zone measurements enable the quantification and monitoring of changes in Superficial and Deep vascular layers. The FAZ tool is also available for narrow and wide scans.
OCT Angiography FAZ – Foveal Avascular Zone   OCT Angiography FAZ – Foveal Avascular Zone
  FAZ Area [mm2]
Perimeter [mm]

VFA – Vascular Flow Area allows the user to examine the pathologically affected area and to precisely measure the area covered by vascularization.
The simple and easy area measurement can be performed on a predefined or user-selected vascular layer.
OCT Angiography VFA – Vascular Flow Area  OCT Angiography VFA – Vascular Flow Area
  Area [mm2]
Flow Area [mm2]

NFA – Non Flow Area measurement tool makes it possible to quantify the Non Flow Area on the OCT Angio examination. It provides the sum of all marked areas.
OCT Angiography NFA  OCT Angiography NFA
  Non Flow Area [mm2]

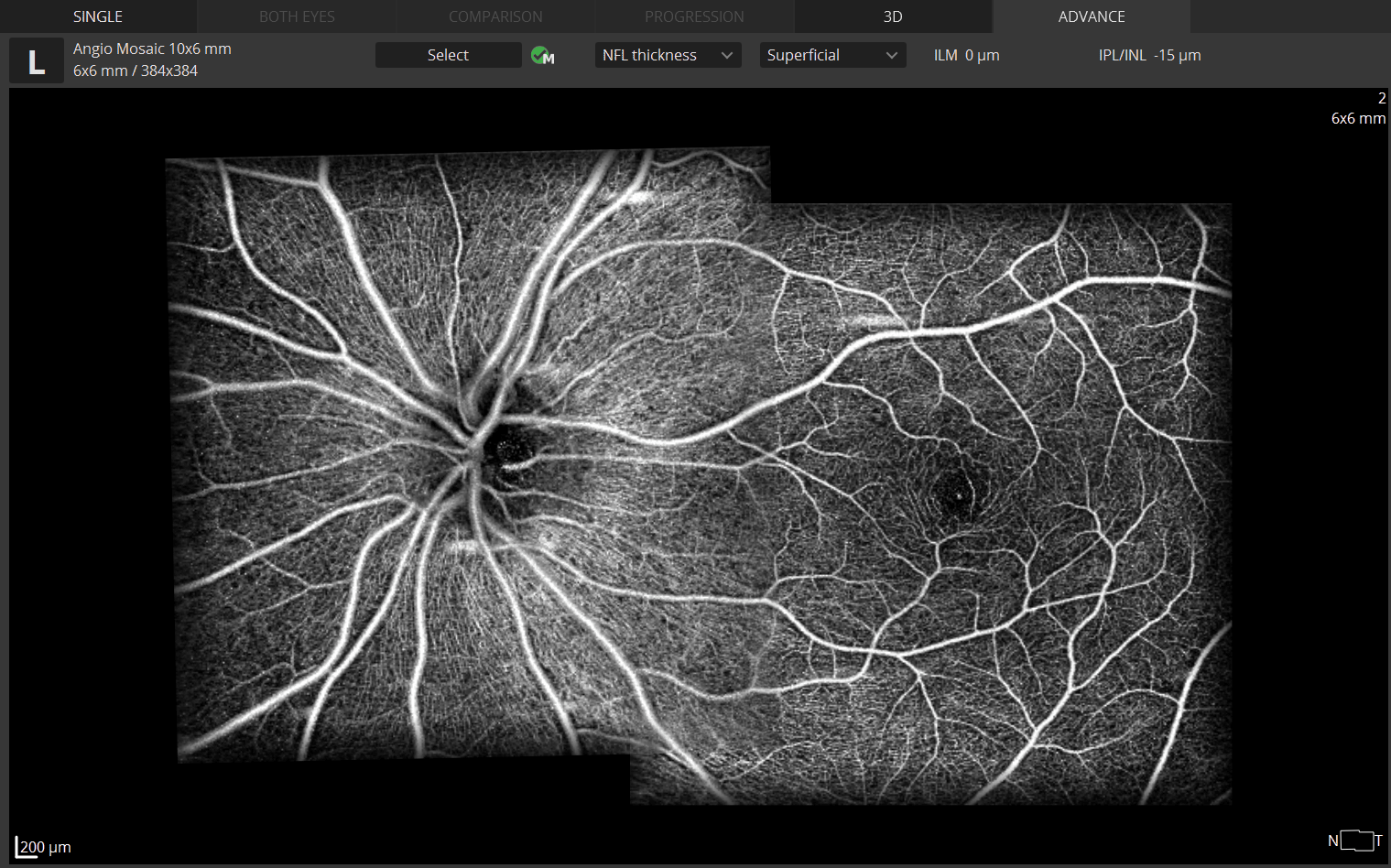

The Angiography mosaic delivers high-detailed images over large field of the retina. Advanced tab provides: view of any vascular layers, enface view of vascular layers, depth coded and thickness map.

Mosaic modes: 10x6 mm
Manual (up to 12 images)

BIOMETRY OCT is optional software module to purchase
B-OCT® is an innovative method of using the posterior OCT device to measure ocular structure along eye axis.
OCT Biometry provides a complete set of Biometry parameters: Axial Length AL, Central Cornea Thickness CCT, Anterior Chamber Depth ACD, Lens Thickness LT, Pupil size P and White to White WTW.

The B-OCT® module is available in two options:
  • Standard Biometry module:
    • High myopia management
    • Axial distance measurement
    • IOL Calculator
    • IOL lens editor
    • support
The standard version of the module broadens the functionality of the device with the addition of the IOL Tab which allows the user to calculate the lens power of a selected IOL model (on the basis of the patient’s morphological data).
  • Basic Biometry module:
    • High myopia management
    • Axial distances measurement
    • No IOL Calculator
    • Optometrist dedicated module
The basic B-OCT® module provides an exceptional comfort of daily use.

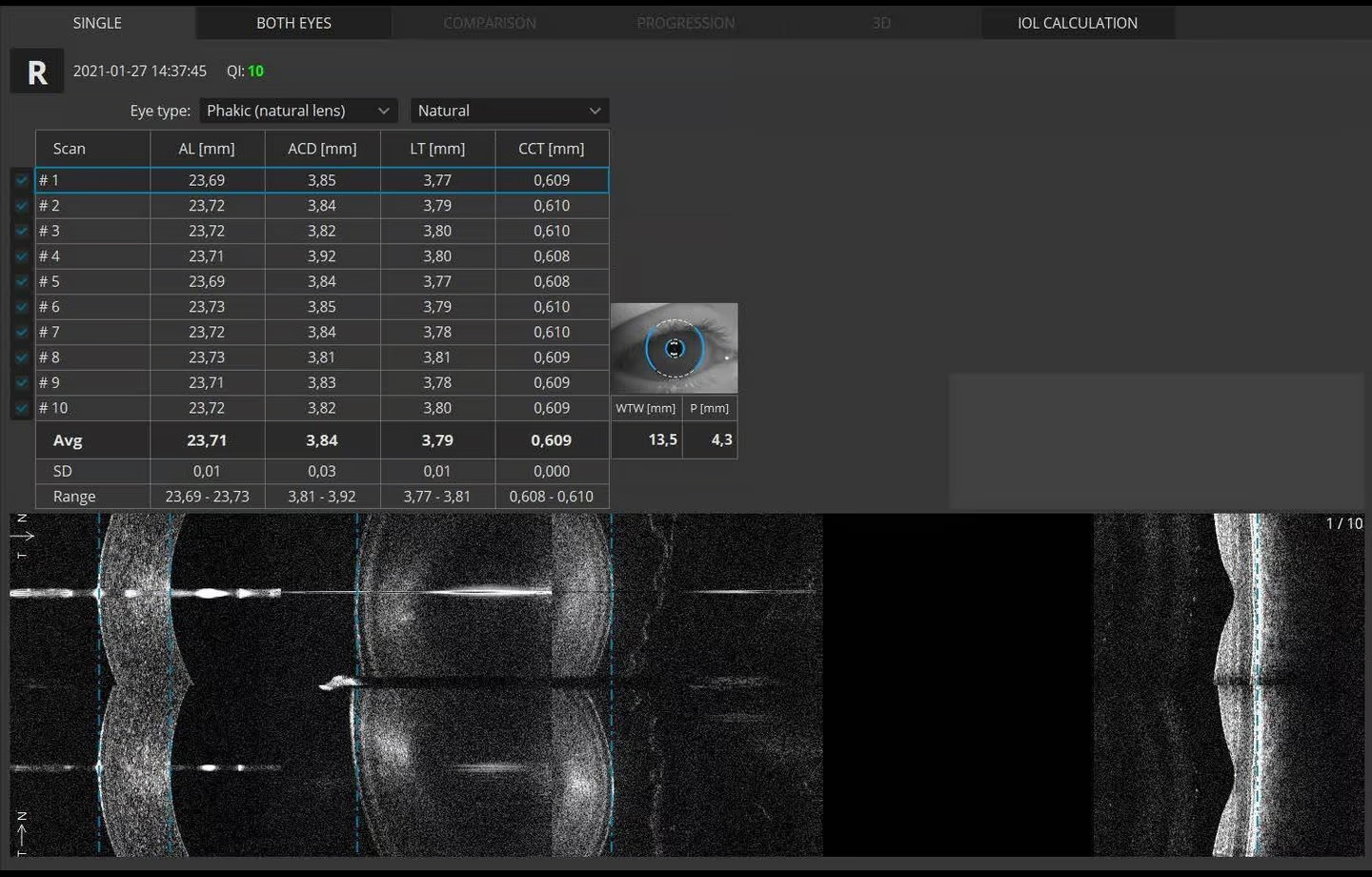

Result review
Analysis window
Visually verify your measurement
All measurement calipers are shown on the all boundaries OCT image provided by REVO. It allows to can visually verify and correct what structure of the eye has been measured.

IOL formulas allow the user to calculate IOL implant parameters. Our systems now support the latest IOL data base standard so that you can always keep your library up-to-date.

TOPOGRAPHY OCT is optional software module to purchase

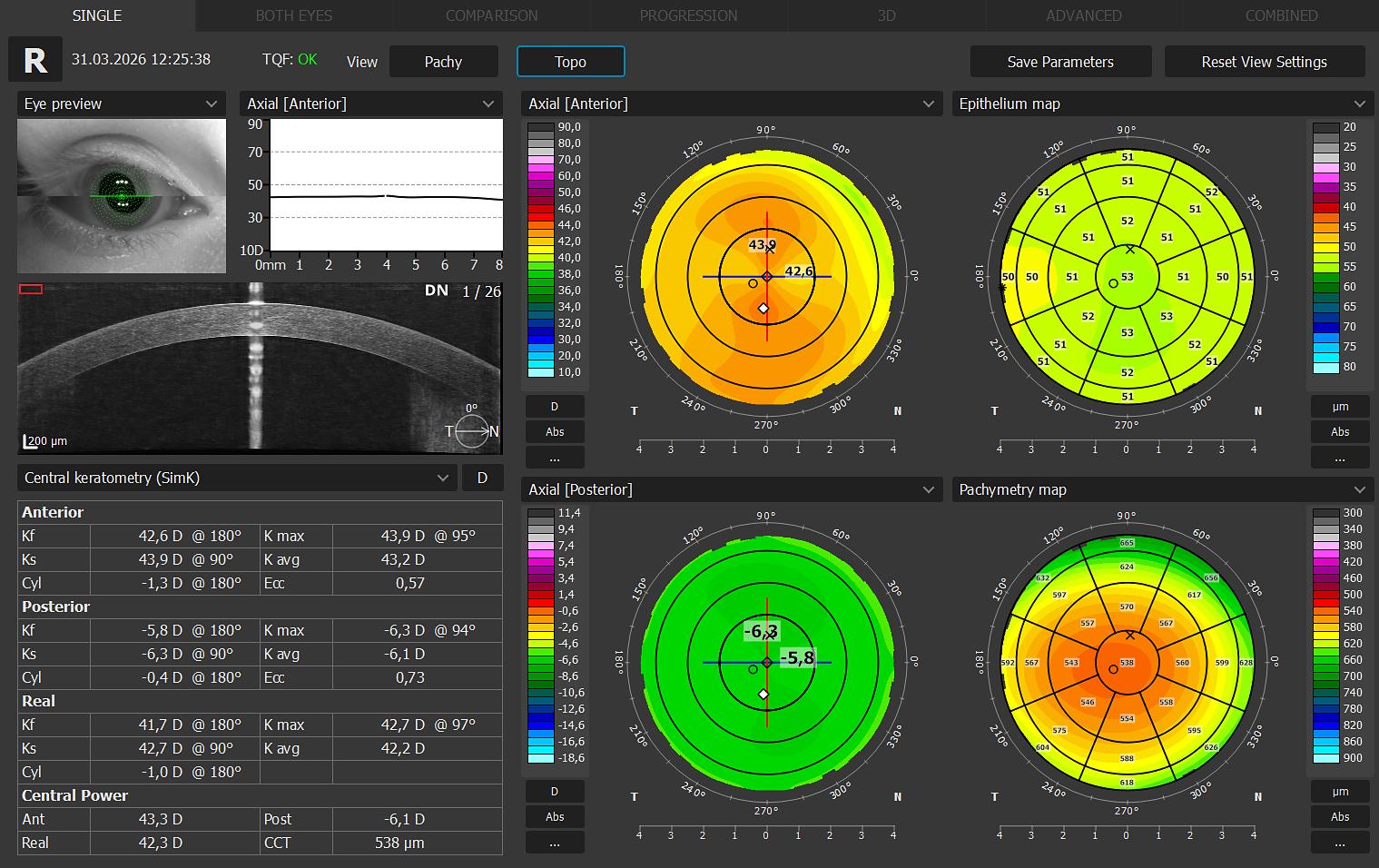

T-OCT™ is a pioneering way to provide detailed corneal Curvature maps by using posterior dedicated OCT. Ante-rior, Posterior  surface and Corneal Thickness allow to provide the  True Net Curvature information. With Net power, the precise understading of the patient’s corneal condition comes easily and is free of errors associated with modelling of posterior surface of the cornea.  SOCT T-OCT module provides Axial maps, Tangential maps, Total Power map, Height maps, Epithelium and Corneal thickness maps.
Corneal topography module clearly shows the changes in the cornea on the difference map view. Customize your
Topography module provides:
  • Full featured Corneal mapping of Anterior, Posterior and Real
  • Precise Astigmatism Display Option (SimK: Anterior, Posterior, Real,  Meridian and Emi-Meridian ø 3, 5, 7 mm zones
Easly detect and classified keratoconus with Keratoconus classifier. Classification based on KPI, SAI, DSI, OSI and CSI. In the early stages of kera-toconus the results can be complemented by Epithelium and Pachymatery maps.
Normal Astigmatysm Keratoconus

Comprehensive software features  a range of selectable views: Single, Both. See details on standard Singe view and easly see corneal asymmetry on the Both view.
The follow-up feature in to the T-OCT™ module, allows fully compare the changes in the corneal topography over time for:
  • LASIK undergone patients
  • Keratoconus patients
  • The contact lens wearers
Single Both
Comparison Progression


ENHANCE TOMOGRAMS - 2 µm Ultra High (Digital) Resolution
ENHANCE TOMOGRAMS - 2 µm Ultra High (Digital) Resolution




Wide cornea scan, Descemet’s membrane detachment (DMD) and iridocorneal adhesions
Wide cornea scan, Descemet’s membrane detachment (DMD) and iridocorneal adhesions
* Images courtesy of Prof. Edward Wylęgała MD, PhD






Angle to Angle scan, narrow angles
Angle to Angle scan, narrow angles
*Image courtesy of Bartosz L. Sikorski MD, PhD



Tech specs
Spectral Domain OCT
Scanning speed 80 000 measurements per second
Light Source
SLED, Wavelength 850 nm
50 nm half bandwidth
Axial resolution
2.6 μm digital, 5 μm in tissue
Transverse Resolution
12 μm, typical 18 μm
Overall scan depth
2.8 mm / ~6 mm in Full Range mode
Scan range
Posterior 5 mm to 15 mm, Angio 3 mm to 6 mm, Anterior 3 mm to 18 mm
Scan program 3D, Angio, Full Range Radial, Full Range B-scan, Radial, B-scan, Raster, Cross, TOPO, AL, ACD
Fundus image
Live Fundus Reconstruction
Alignment method
Fully automatic, Automatic, Manual
Retina analysis
Retina thickness, Inner Retinal thickness, Outer Retinal thickness, RNFL+GCL+IPL thickness, GCL+IPL thickness, RNFL thickness, RPE deformation, MZ/EZ-RPE thickness
Angiography OCT
available only for SOCT Copernicus REVO with 80 000 and 60 000 measurements per second

Angiography mosaic
Vitreous, Retina, Choroid, Superficial Plexus, RPCP, Deep Plexus, Outer Retina, Choriocapilaries, Depth Coded, SVC, DVC, ICP, DCP, Custom, Enface, FAZ, VFA, NFA, Quantification: Vessel Area Density, Skeleton Area Density, Thickness map

Acquistion method: Auto, Manual
Mosaic modes: 10x6 mm, manual up to 12 images
Glaucoma analysis
RNFL, ONH morphology, DDLS, OU and Hemisphere asymmetry, Ganglion analysis as RNFL+GCL+IP and GCL+IPL,
Structure + Functionvia connection with PTS software version 3.4 or higher
Pachymetry, Epithelium map, Stroma map, AIOP, Angle Assessment, AOD 500/750, TISA 500/750
Anterior (no lens/adapter required)
Anterior Chamber Radial, Anterior Chamber B-scan, Angle to Angle view
Biometry OCT
an optional software module to purchase
IOL Formulas: Hoffer Q, Holladay I, Haigis, Theoretical T, Regression II
Corneal Topography Map
an optional software module to purchase for SOCT Copernicus REVO with 80 000 and 60 000 measurements per second
Axial [Anterior, Posterior], Refractive Power [Kerato, Anterior, Posterior, Total], Net Map, Axial True Net, Equivalent Keratometer, Elevation [Anterior, Posterior], Height, KPI (Keratoconus Prediction Index)
Connectivity DICOM Storage SCU, DICOM MWL SCU, CMDL, Networking
Minimum pupil size
2.4 mm
Focus adjustment range
-25 D to +25 D
Dimensions (W×D×H)
479 x 367 × 493 mm
29 kg
Fixation target
OLED display (The target shape and position can be changed),
External fixation arm
Power supply
100–240 V, 60/50 Hz
Power consumption
90–110 VA
