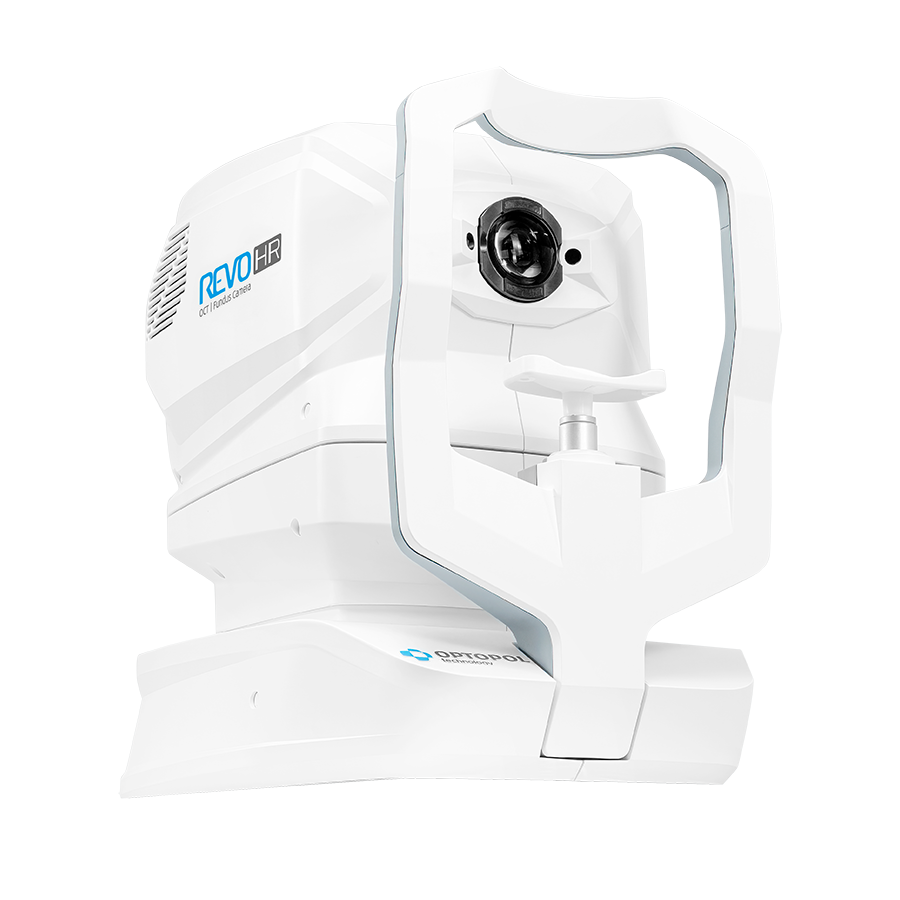

REVO HR
Spectral-Domain OCT | Color Fundus Camera
Ultra High Resolution.

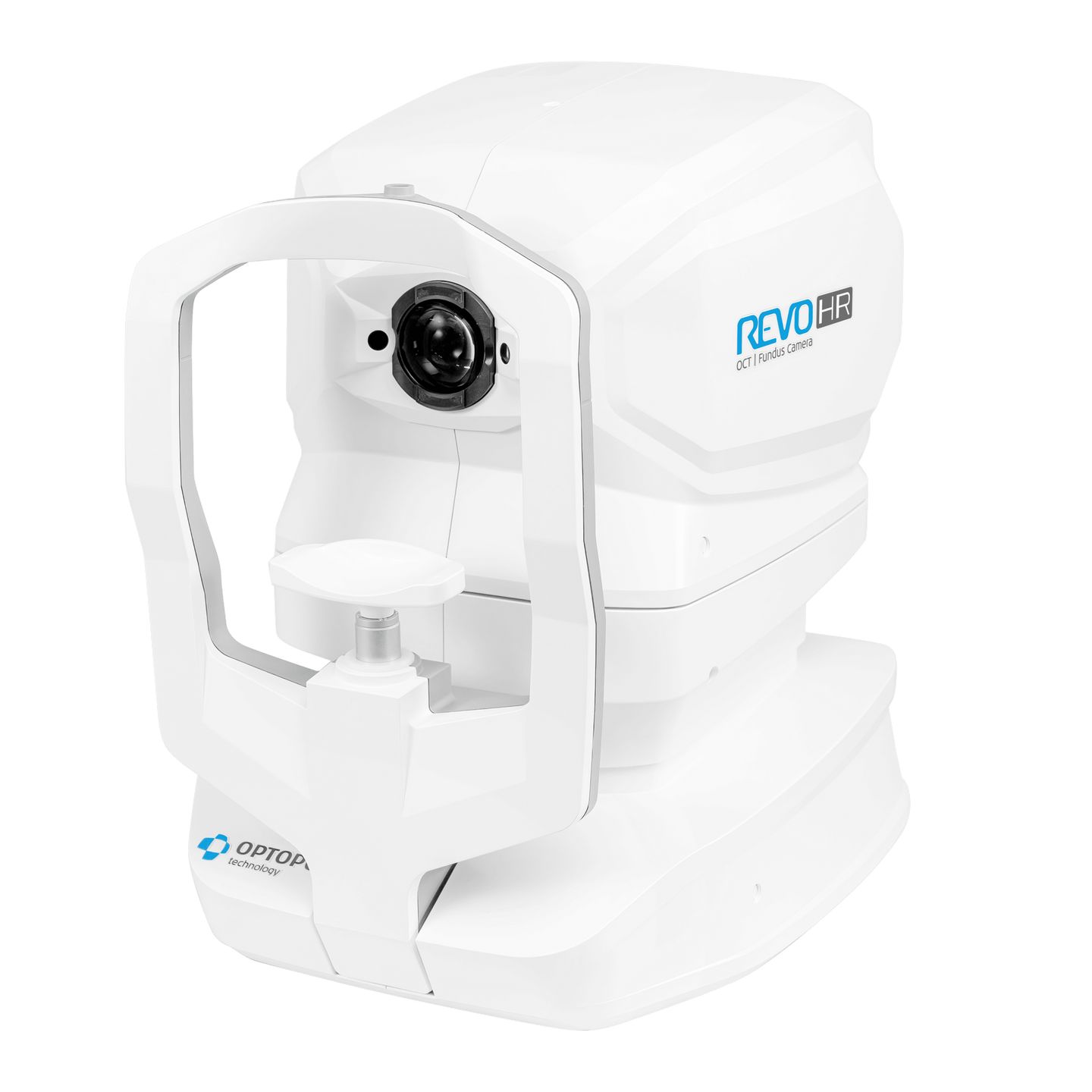

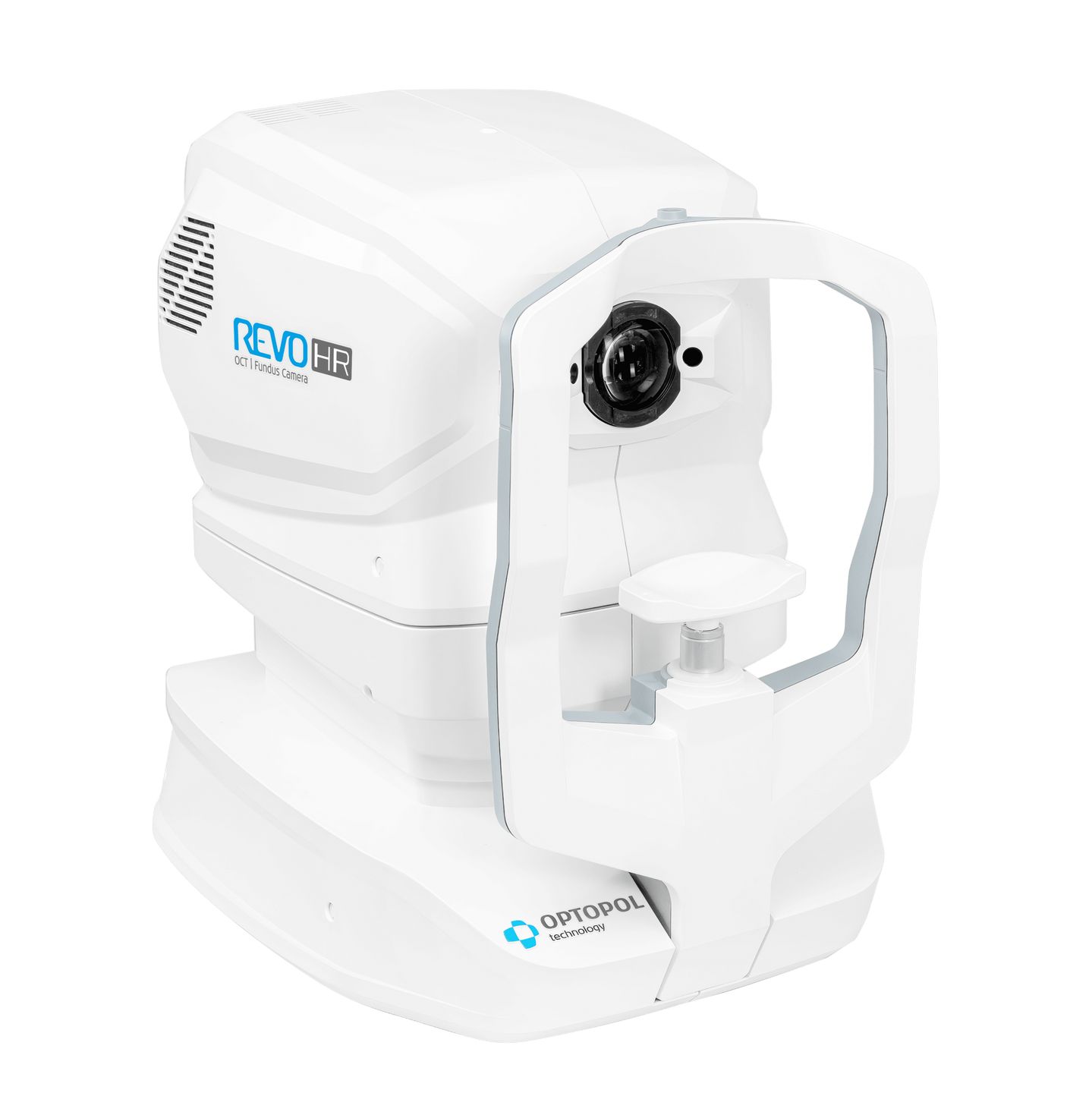

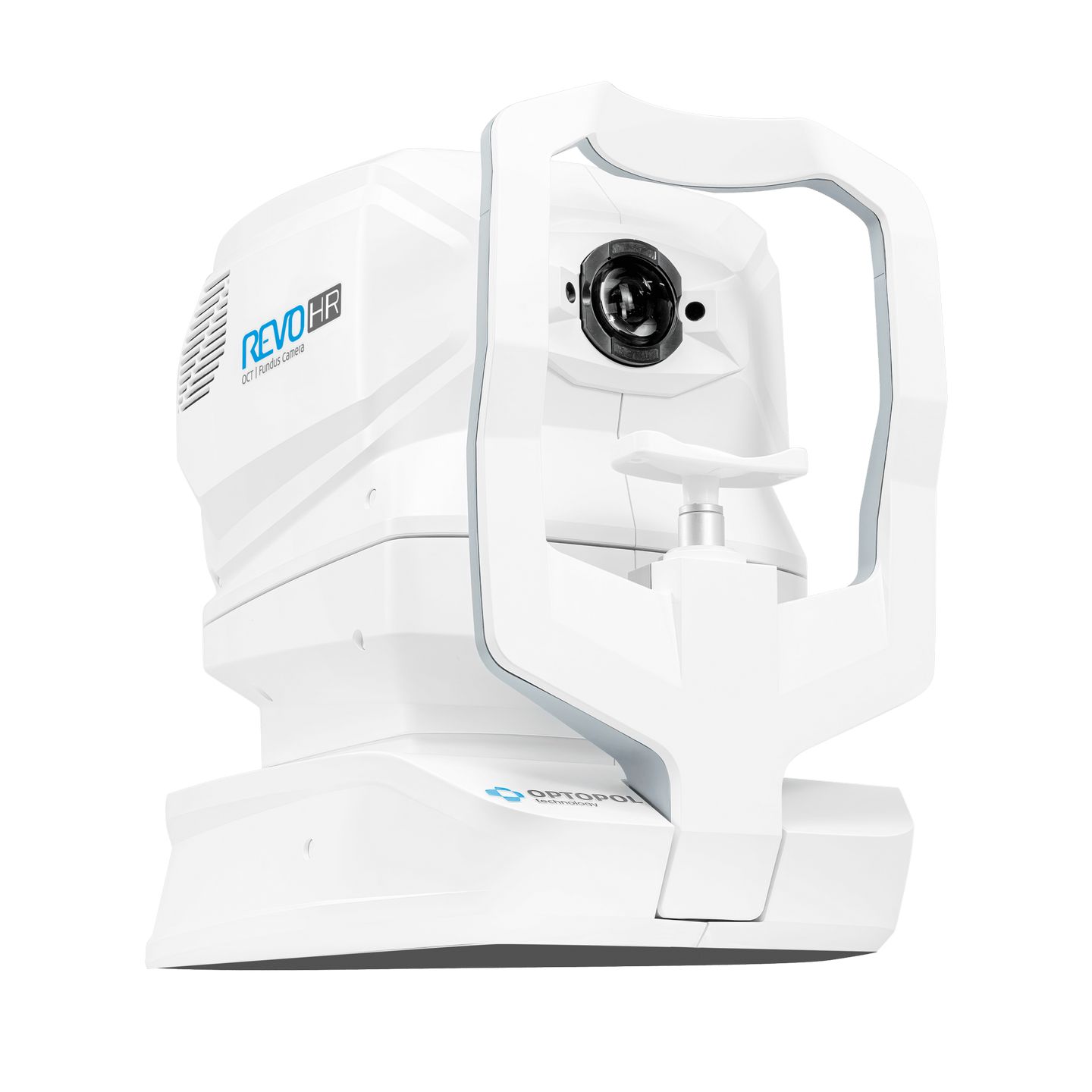

The REVO HR is an all-in-one device you can use in a number of ways such as a full color Fundus Camera or as a combo, providing simultaneous OCT and fundus images for high quality OCT imaging, including OCT-A.
With a unique combination of super-fast scanning at 130,000 scans per second and ultra-high 3 µm resolution, this powerful device takes precision, accuracy, and detection of even the finest lesions to a whole new level.
Create your dream all-in-one OCT
Full Auto SD-OCT
Color Fundus Camera
OCT-A Angiography*
This non-invasive dye free technique enables the visualization of the microvasculature of the retina.
T-OCT™ Topography*
Detect corneal abnormalities with this pioneering way to capture detailed corneal curvature maps.
B-OCT® Biometry*
Perform automated measurements of the entire ocular structure and combine a biometer into your OCT.
IOL Calculation**
Keep your library up to date by calculating IOL implant parameters using the latest IOL database standard IOLCon.org.
Ultra-high Resolution
* Available as an optional software module add-on function
** Requires B-OCT® Biometry module
Take your OCT to the next level
REVO HR
AI DeNoise
Auto Functions
AccuTrack™
Full range
Connectivity
Structure&Function (S+F)
Glaucoma Tool Kit

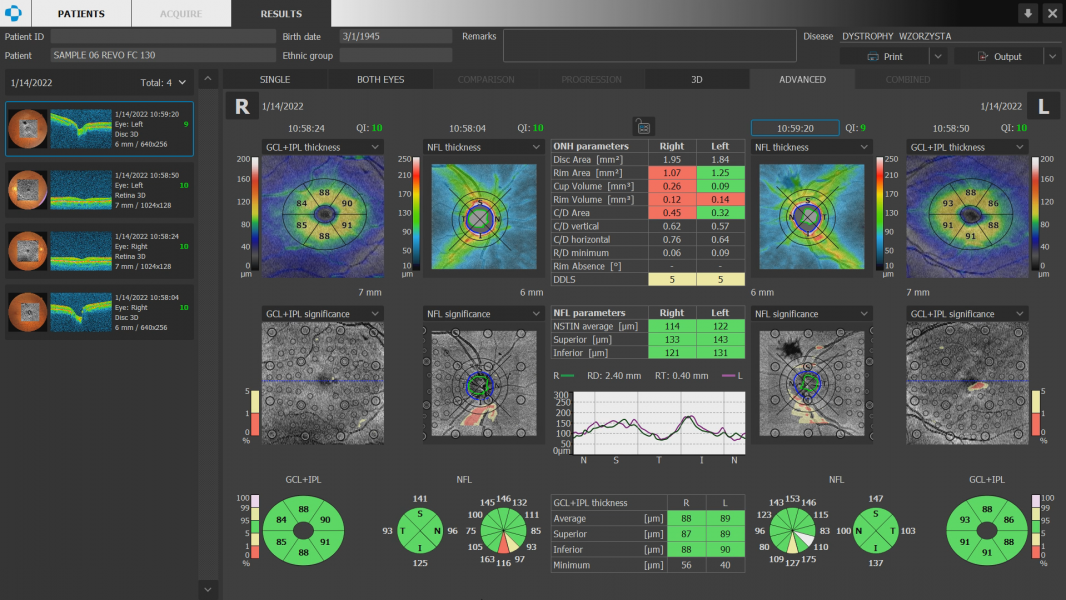

Comprehensive glaucoma analytical tools for quantification of the Nerve Fiber Layer and Ganglion Cell Layer. The Disc Damage Likelihood Scale enables clinicians to precisely diagnose and monitor glaucoma for Optic Nerve Head analysis.

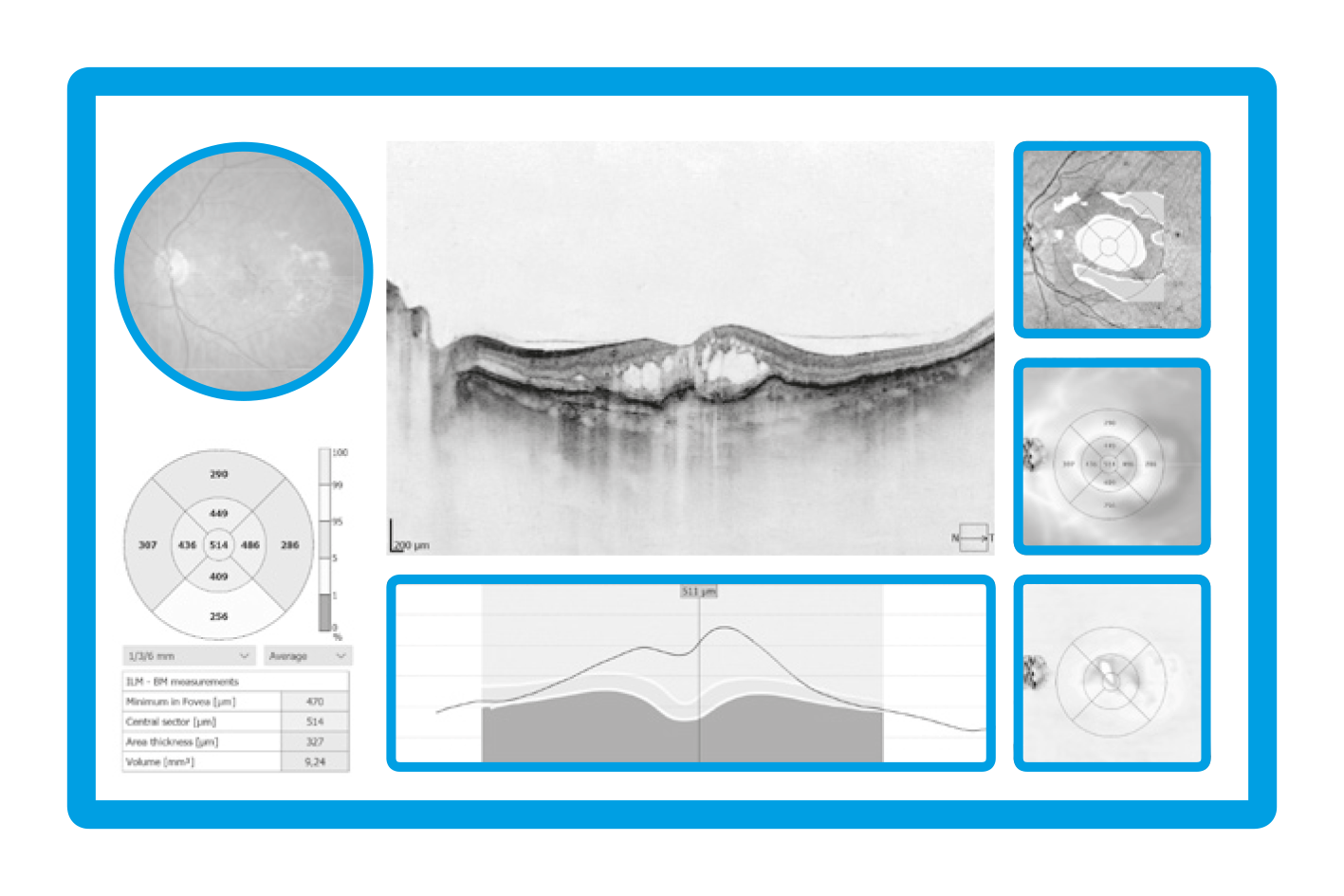

Custom Scan Protocols
Save time and never miss a scan. Combine any scan type into a pre-set group. Choose a group of scans and set the order, the REVO will do the rest.
Motion Correction
Progression Analysis
Ultra High Resolution

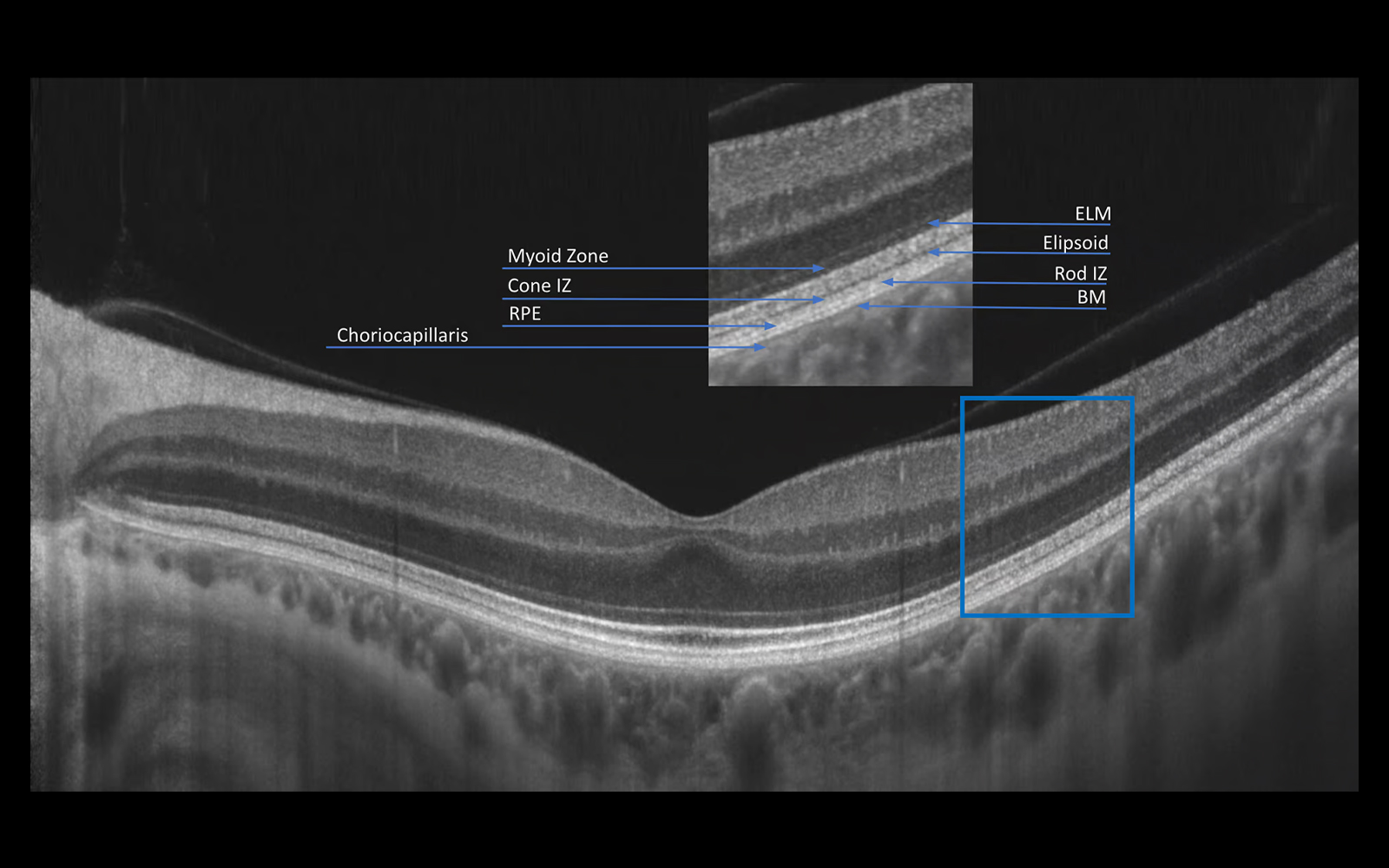

The combination of super-fast scanning at 130,000 scans per second and 3 µm High Resolution will provide a powerful tool for optimising precision, accuracy and improving the detection of the smallest lesions in tissue.
Optopol Technology introduced the world’s first high resolution spectral OCT model, the Copernicus HR, in 2008.
Today, continuing all efforts and taking functionality to the next level, Optopol Technology presents a new model in the REVO series – the REVO HR.
With a unique combination of super-fast scanning at 130,000 scans per second and ultra-high 3 μm resolution, this powerful device takes precision, accuracy, and detection of even the finest lesions to a whole new level.

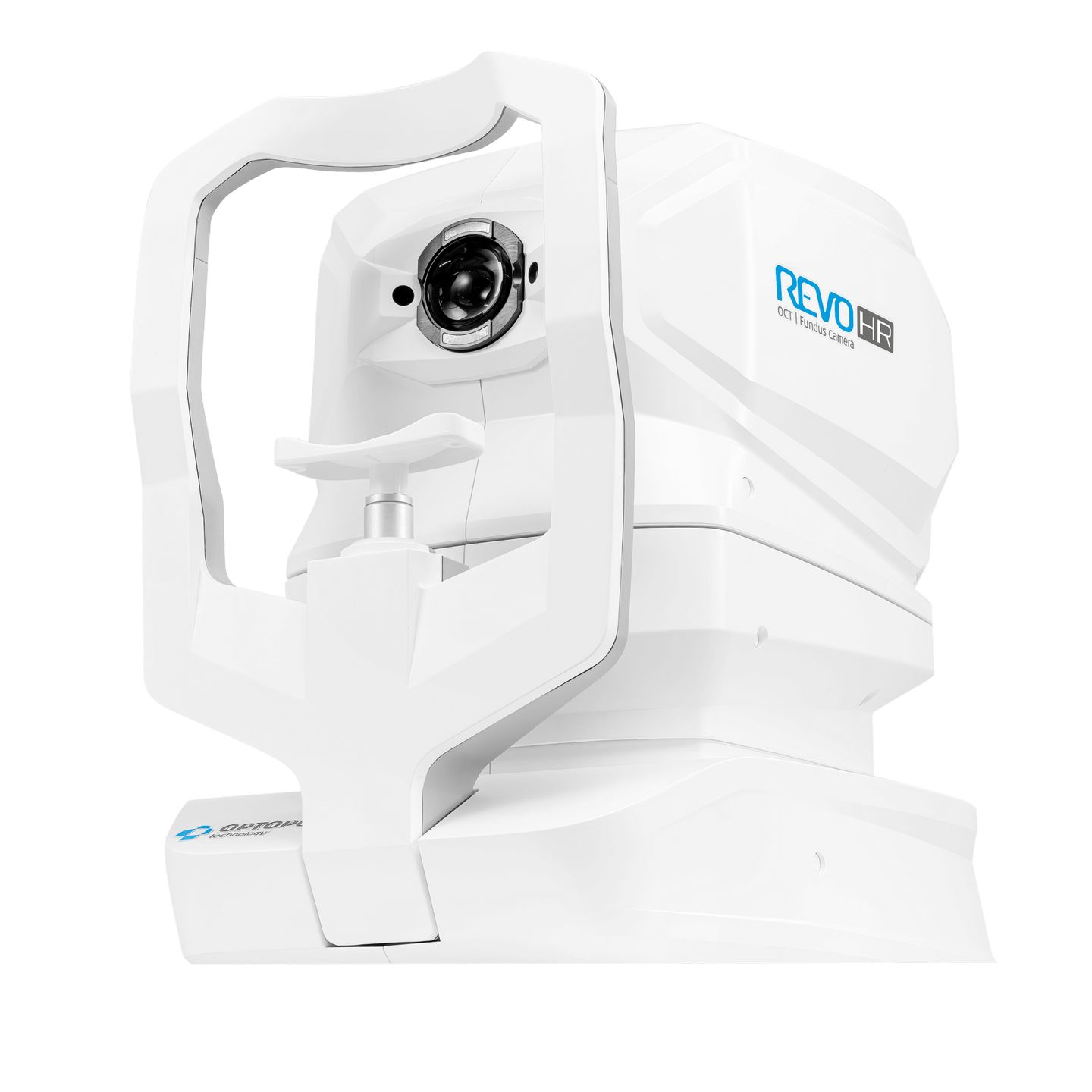

The REVO HR is an all-in-one device you can use in a number of ways such as a full color fundus camera or as a combo, providing simultaneous OCT and fundus images for high quality OCT imaging, including OCT-A.
Non-Myd Color Fundus Camera
Capture high-resolution 45° true color retinal imaging.
- Auto-alignment, auto-focus, auto-flash, auto-capture with the push of a button.
- Capture high resolution fundus images with a pupil size as small as 3.3 mm.
- Toolkit of various fundus image processing tools.

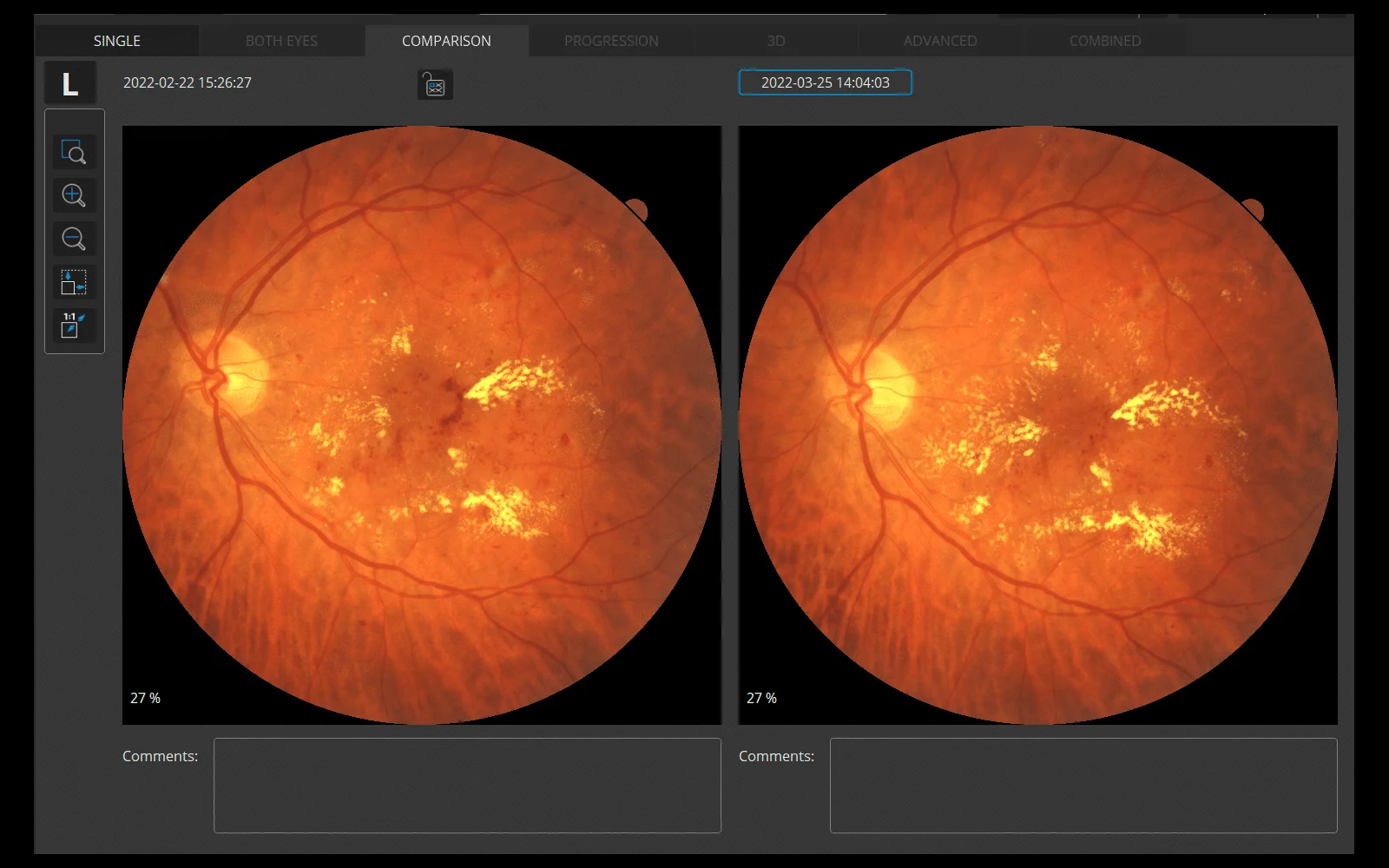

- Deliver detailed photos of one or both eyes as well as a chronological comparison.
- Save time by attaching a single fundus photo to several OCT scans.
Spectral-Domain OCT
Shaping the Future of OCT.
Since introducing the first Spectral Domain OCT technology in 2005, OPTOPOL has been driving innovation in eye imaging. With years of experience behind us, we’re dedicated to delivering outstanding results for both patients and eye care professionals. Enjoy the perfect balance of ultra-high-quality scans and an intuitive, easy-to-use interface.
- Posterior & Anterior Scans – comprehensive imaging capabilities in one device
- Combine one-touch exams with preset scan combinations for streamlined workflows.
- Progression analysis available for detailed analysis over time.
Add-On Software Modules – boost the efficiency and versatility of your OCT system.
Maximum Intesity Projection
The MIP algorithm
Choose better visualization of angio data for analysis with the Maximum Intensity Projection (MIP) feature. This tool is useful for visualizing OCT-A data as it enables easier identification and tracking of high-intensity structures such as blood vessels.
NEW
NEW

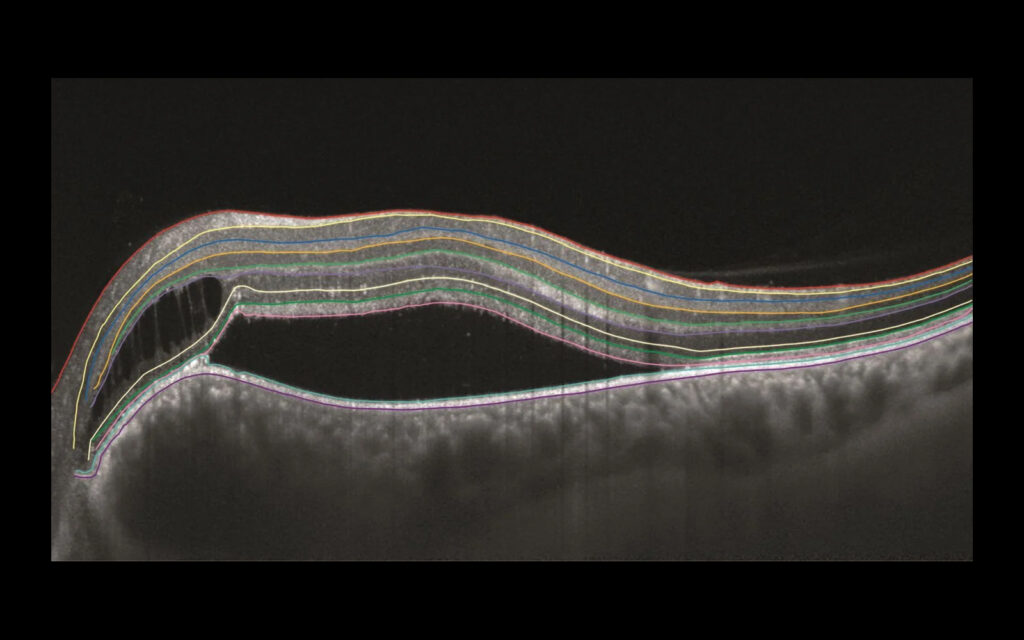

AI Segmentation
AI Retina
This new layer segmentation for the posterior segment is based on artificial intelligence, resulting in more accurate recognition of retinal layer boundaries. The AI system has a direct impact on the accuracy of the clinical assessment and the assessment of the status of areas of pathology in the retina

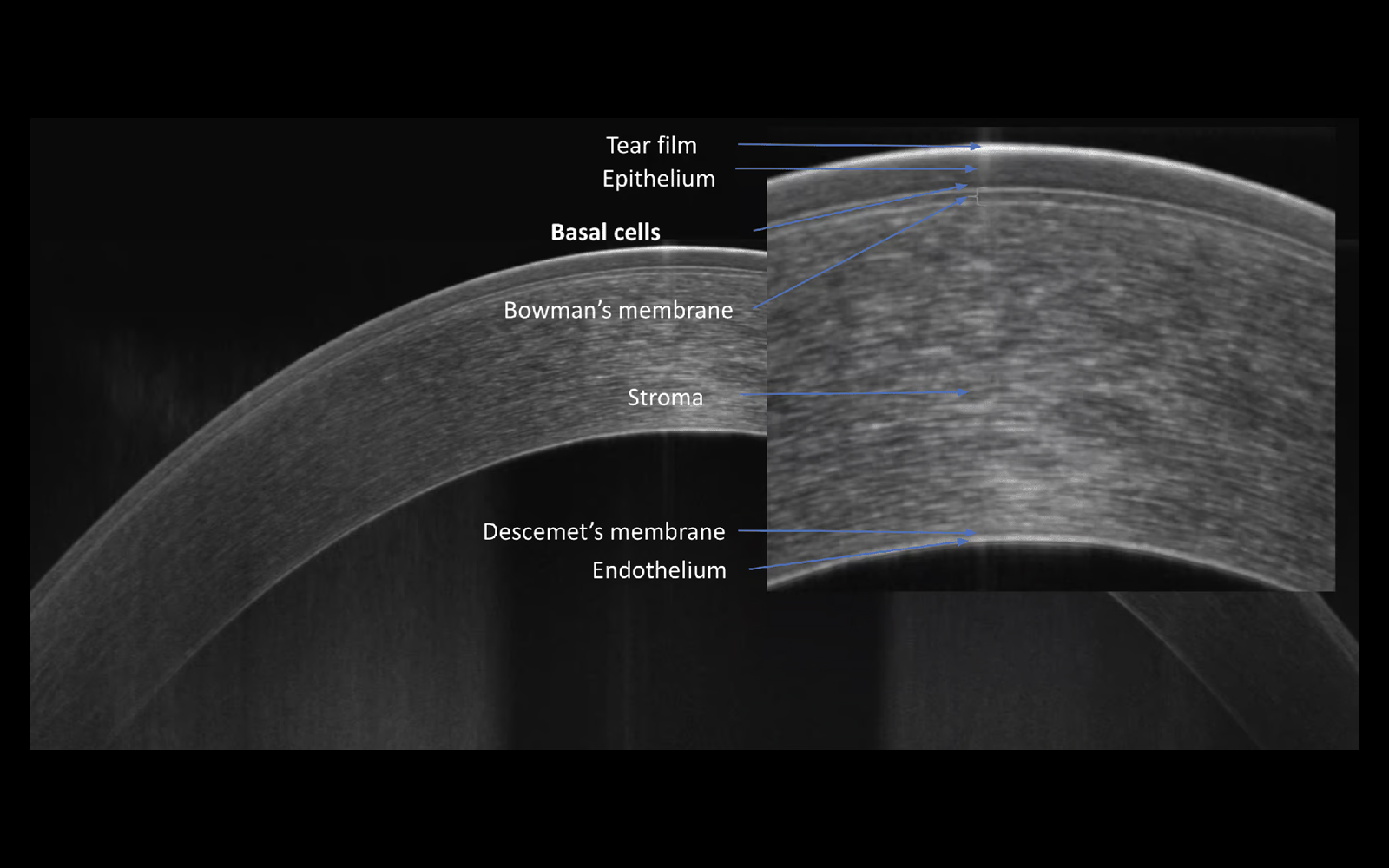

Cornea and Epithelium

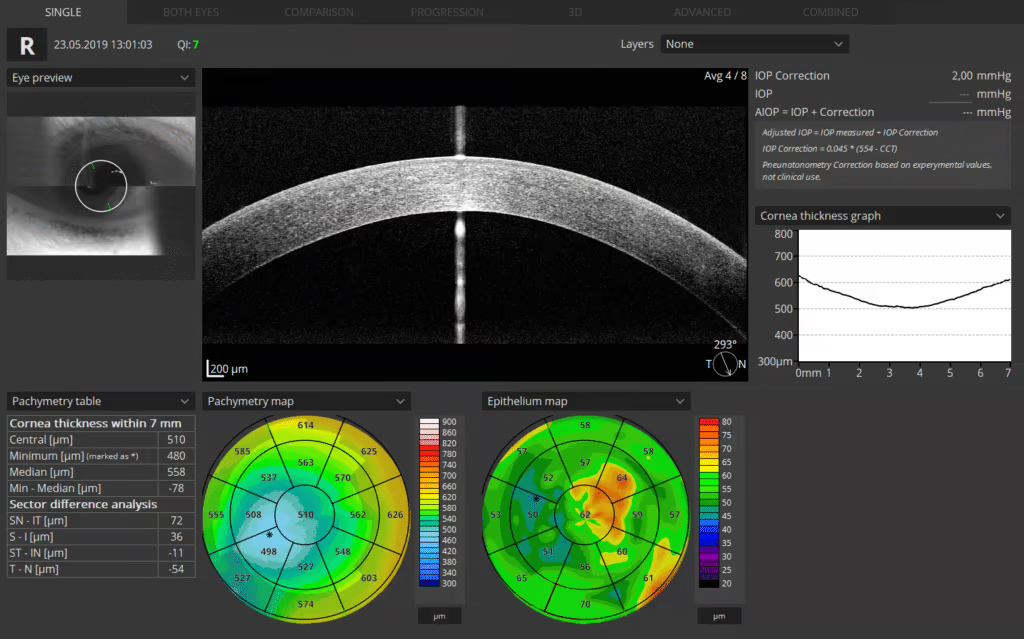

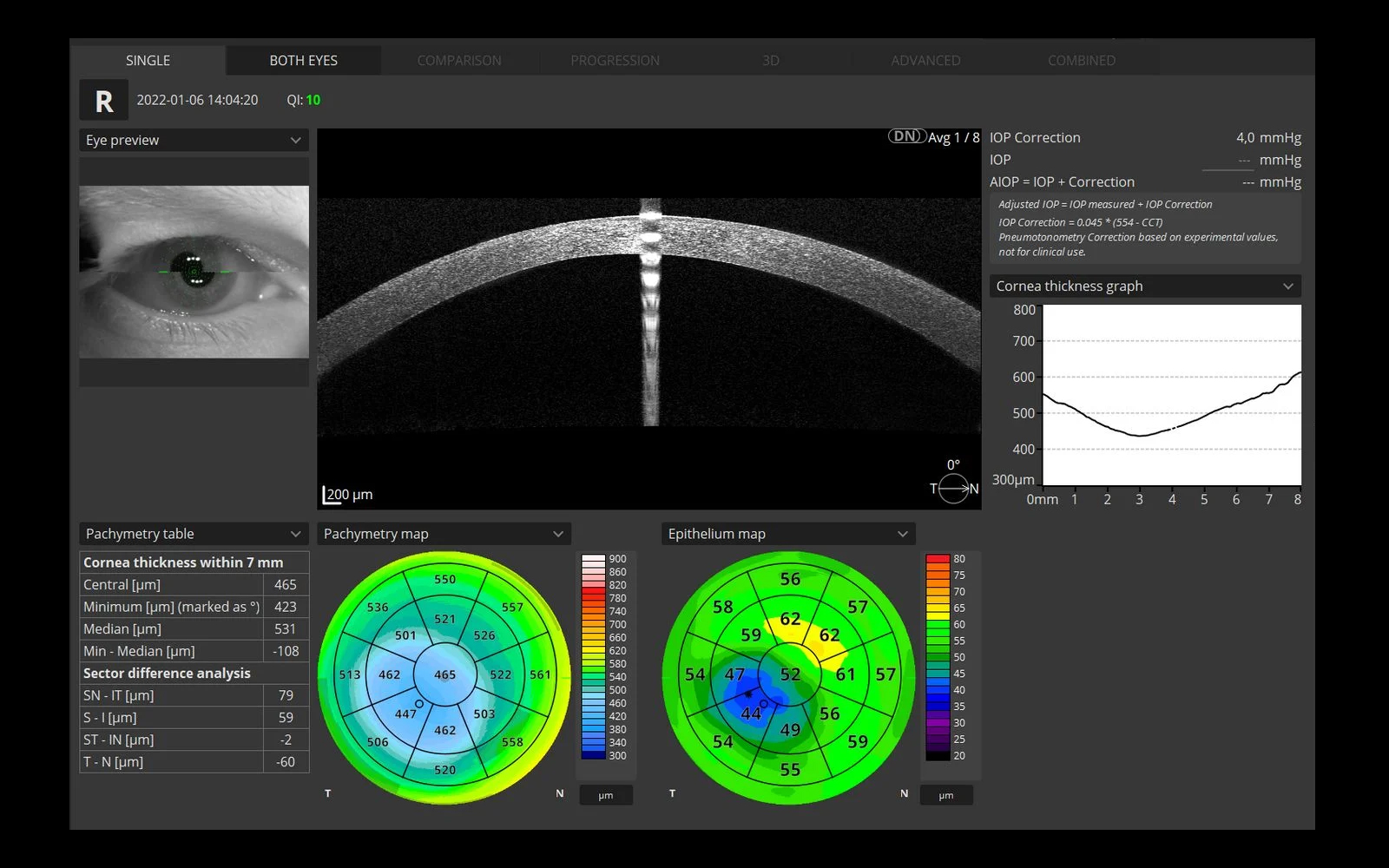

Presentation of the results for both eyes allows quick and precise evaluation of the condition of the patient’s anterior segment. Epithelium and Pachymetry maps are included in the standard package.
NEW
NEW
Widefield Analysis

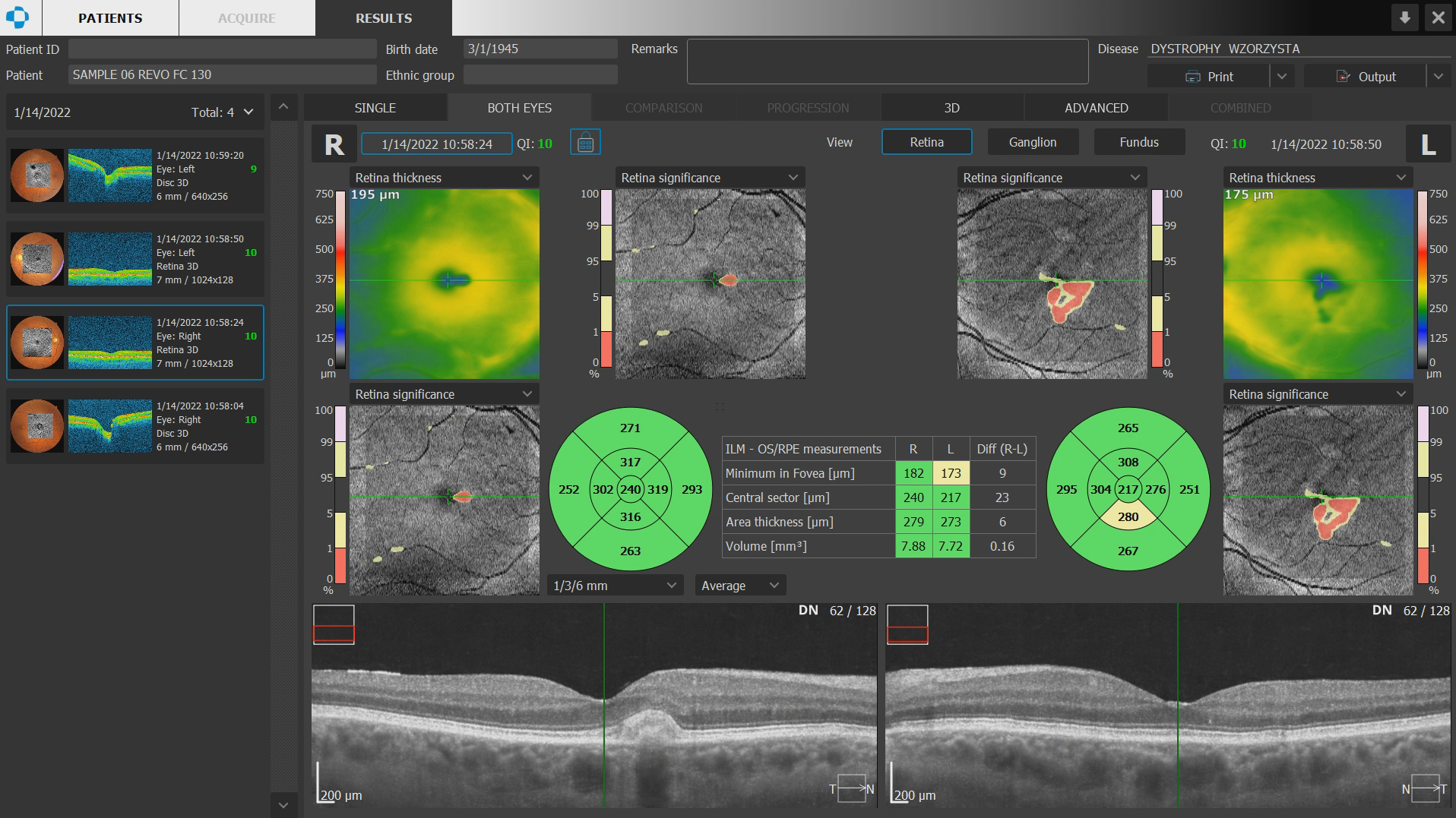

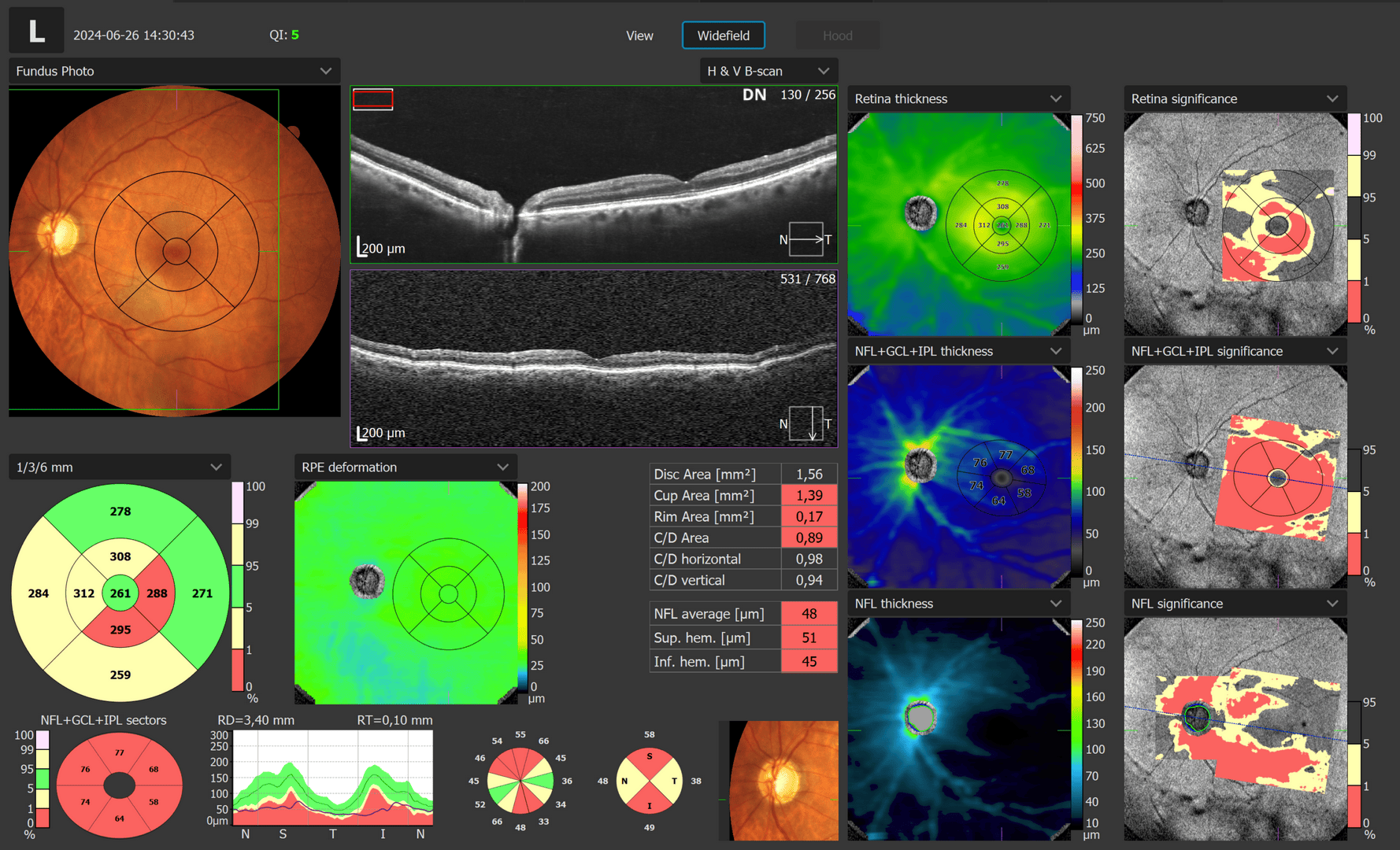

A single Widefield 3D examination is now sufficient for the rapid assessment of both the retina and the glaucoma. Visualize and assess the thickness of the retina, ganglion cell, nerve fibers layers and optic nerve head on comprehensive data report when performing a rapid examination mapping up to 15×15 mm section. Widefield report presents horizontal and vertical tomograms and will include the topography of the disc creating helpful observation of glaucoma patients.
NEW
NEW

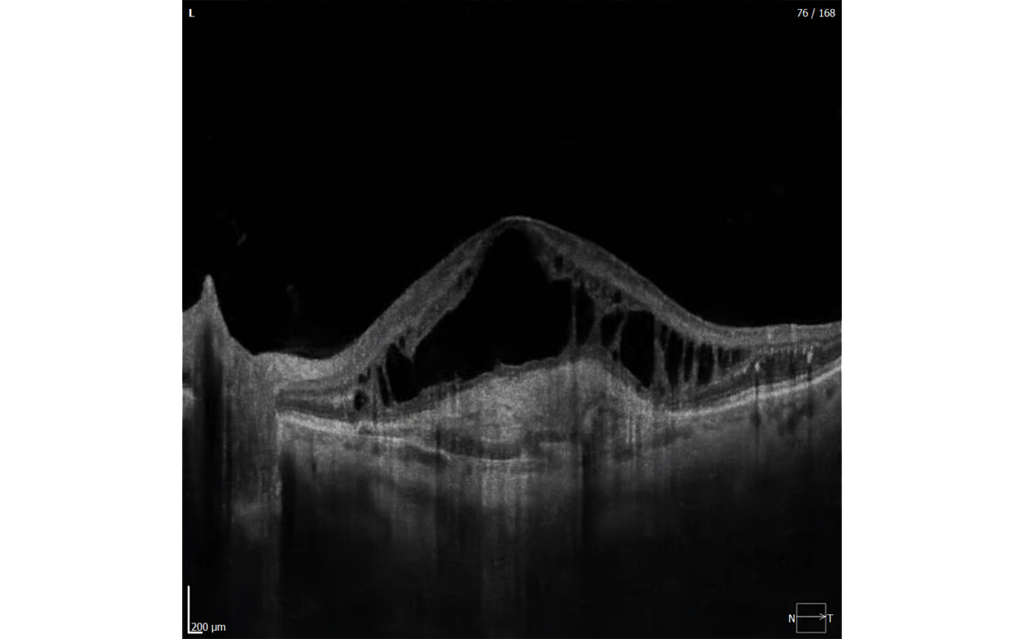

Cataract mode
The cataract mode in the REVO series opens up new possibilities for patients with challening cases.
This featureprovides visualisation of structures hidden beneath opaque layers, making it ideal for diagnosing eye conditions thatwere previously difficult or impossible to study in patients with cataract, corneal oedemas or very dense floaters.The cataract mode allows the scanning speed and sensitivity of the OCT to be modified for better visualisation ofpatients with opaque media.
Optional Software Modules
OCT Angiography

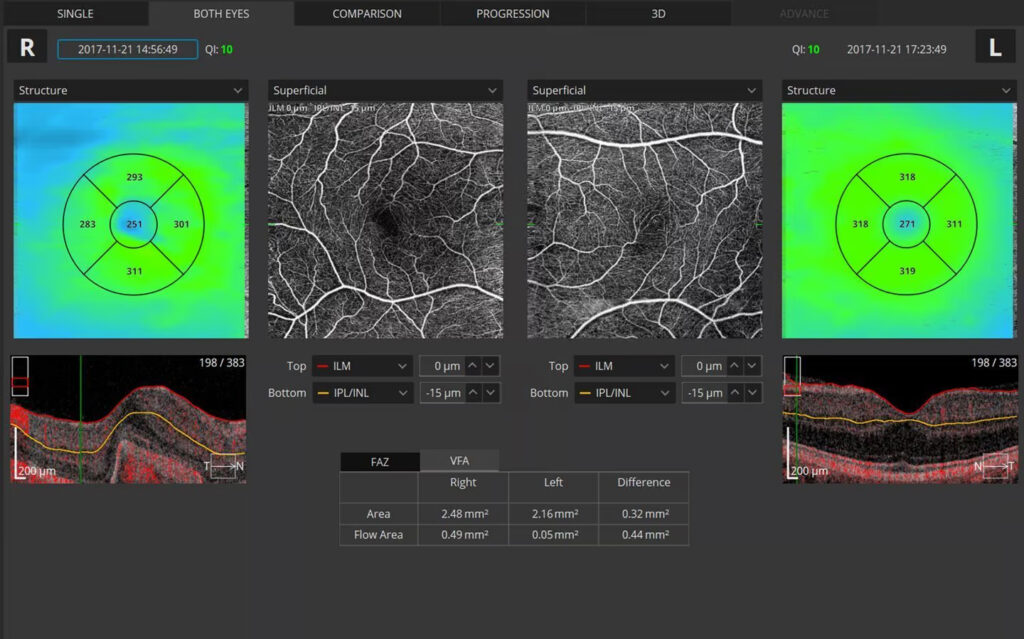

This non-invasive dye free technique enables the visualization of the microvasculature of the retina.
OCT Angiography provides an alternative to the traditional fluorescein method. Although OCT-A will not completely replace FA imaging, it is a quick and non-invasive tool. The software allows clinicians to observe, track, and compare changes in the microvasculature of the retina in both eyes.
NEW
NEW
Ultra-Widefield Module
The UWF module provides a new wide perspective of imaging up to ~105º with a single scan. It allows the userto image the macular area along with the far periphery to capture the early stages of disease in the posterior partof the eye. The module allows 3D imaging for full analysis, averaging in enhancement mode, and angio OCT withthe ability to visualise perfusion problems in the periphery.
With the UWF feature in Extended DepthTM software, the diagnostic of high myopia patients will be even easier whileselecting Full Range scanning technology.For patients with difficulties, the UWF feature will provide an option of a Radial scan. This scan will take less time to attain a propersignal from the eye.
Biometry OCT

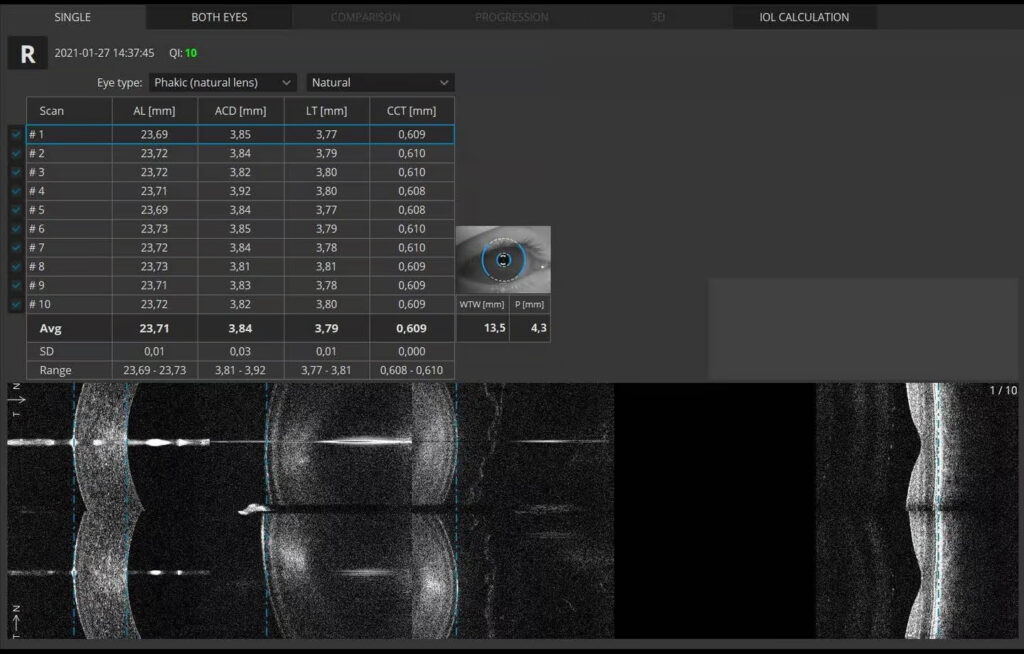

B-OCT® is an excellent tool for any clinician who manages myopia control or performs cataract surgery. Biometry OCT provides a complete set of ocular parameters: Axial Length, Central Cornea Thickness Anterior Chamber Depth, Lens Thickness, Pupil size, and White to White.
High Myopia
The Myopia Forecast module opens progression of the ocular structure parameters according to trends over population mode. Usage reference based on research from multiple universities along with environmental factors allow the monitoring of changes from childhood to adolescence.
The REVO offers an exclusive selection of reference data based on different studies over different time frames and demographics. Reference data can be selected from the NICER San Diez or Tideman studies.

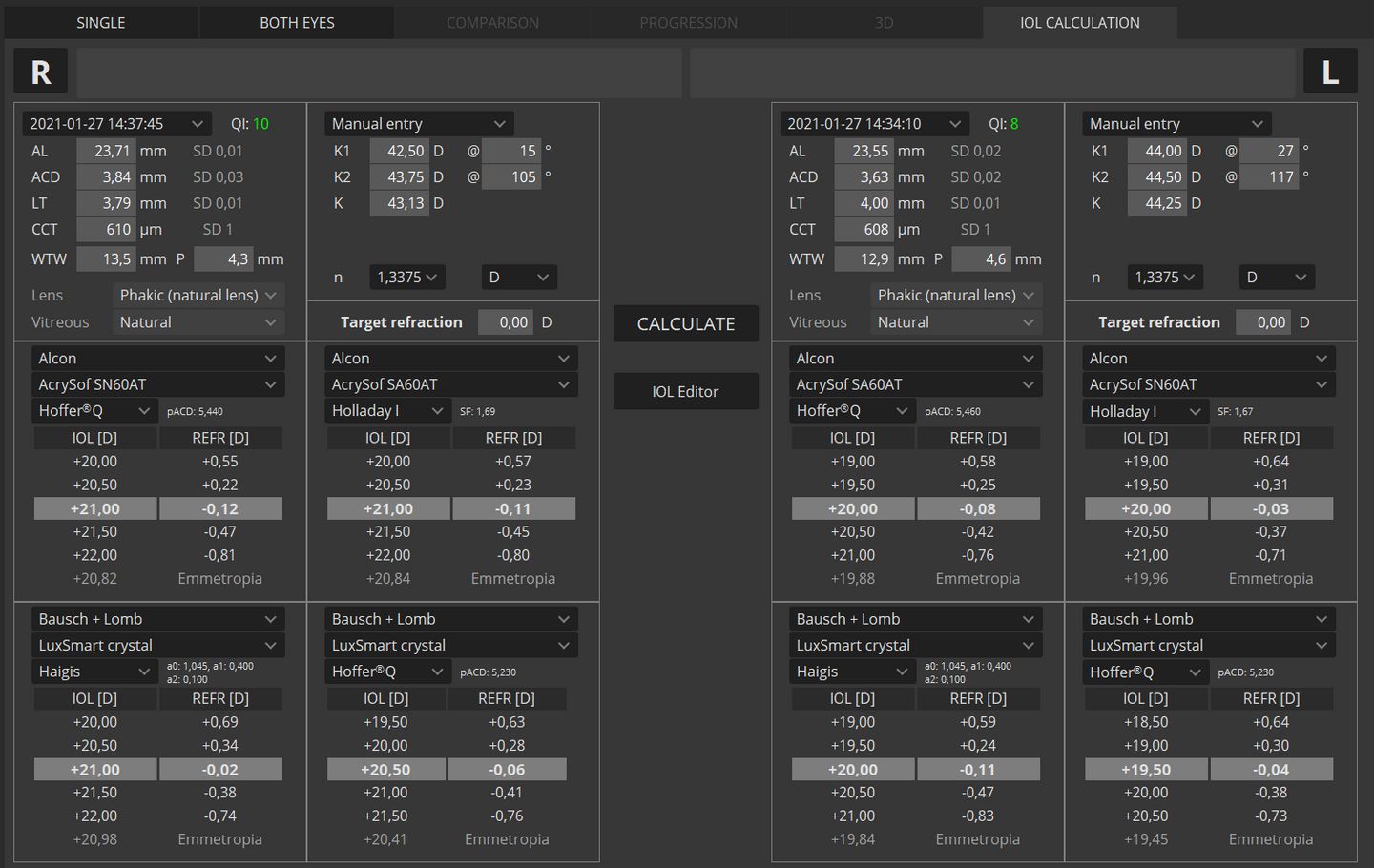

IOL Calculator
IOL formulas allow the user to calculate IOL implant parameters. Our systems now support the latest IOL data base standard IOLCon.org so that you can always keep your library up-to-date.
IOL Formulas*:
- Hoffer® Q,
- Holladay I,
- Haigis,
- Theoretical T,
- Regression II.
OCT Topography

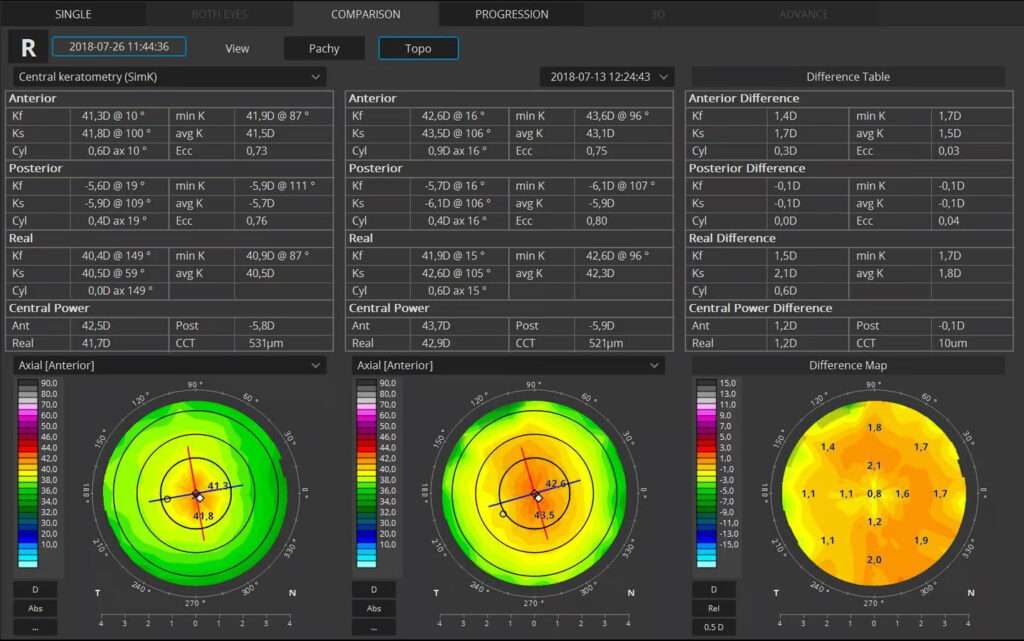

Topography OCT is a pioneering way to provide detailed corneal curvature maps. Anterior, Posterior surfaces and Corneal Thickness provide the True Net Curvature information. T-OCT™ is excellent when paired with the B-OCT® module for IOL surgery.
Additional Scan Programs
Perform high-resolution posterior and anterior segment scans
Retina
- 3D Volume Scan
- Radial Line Scan
- Raster Line Scan
- Retina Cross Scan
- High Resolution Line Scan
Disc
- 3D Volume Scan
- Radial Line Scan
- High Resolution Line Scan
Wide Field
- 3D Volume Scan
- Raster Line Scan
- Full Range Line Scan
Anterior
- 3D Volume Scan
- Radial Line Scan
- Raster Line Scan
- Anterior Cross Scan
- Anterior Line Scan
- Anterior Chamber Full
- Range Radial Scan
- Anterior Chamber Full
- Range Line Scan
Technical Specifications
| FUNDUS CAMERA | |
| Type | Non-mydriatic fundus camera |
| Photography type | Color |
| Angle of view | 45° ± 5% |
| Min. pupil size for fundus | 3.3 mm |
| Camera | 12.3 Megapixel |
| Photography | Fundus (Retina, Central, Disc, Peripheral with Manual fixation), Anterior |
| Flash adjustment, Gain, Exposure | Auto, Manual |
| Intensity levels | High, Normal, Low |
| OPTICAL COHERENCE TOMOGRAPHY | |
| Technology | Spectral Domain OCT |
| Light source | SLED 870 nm, 93 nm width |
| Bandwidth | 93 nm half bandwidth |
| Scanning speed | 130 000 A-scan/sec |

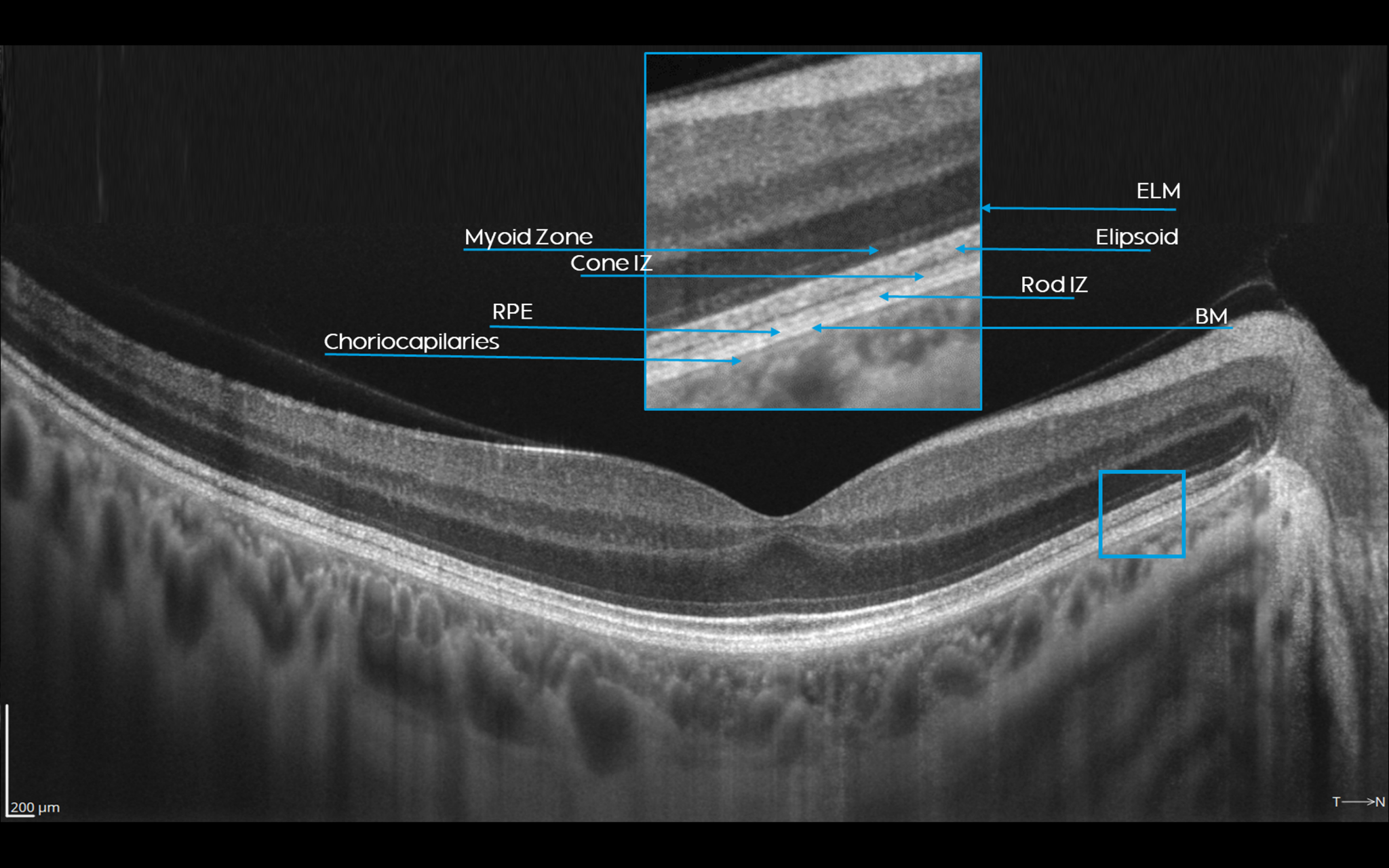

| Axial resolution | ~1.6 μm digital, 3 μm in tissue |
| Transverse resolution | 12 μm, typically 18 μm |
| Overall scan depth | 2.6 mm / 5.6 mm in Full Range mode |
| Min. pupil size for OCT | 1.7 mm |
| Focus adjustment range | -25 D to +25 D |
| Scan range | Posterior 3–15 mm, Angio 3–15 mm, Anterior 3–18 mm |
| Scan types | 3D, Angio, Full Range Radial, Full Range B-scan, Radial (HD), B-scan (HD), Raster (HD), Raster 21 (HD), Cross (HD), TOPO², Biometry AL |
| Fundus alignment | IR, pSLO (Live Fundus Reconstruction) |
| Alignment method | Fully automatic, Automatic, Manual |
| Fundus tracking | ACCUtrack – active real time, iTracking |
| Retina analysis | Retina thickness, Inner Retinal thickness, Outer Retinal thickness, RNFL+GCL+IPL thickness, GCL+IPL thickness, RNFL thickness, RPE deformation, MZ/EZ-RPE thickness |
| Angiography OCT | Vitreous, Retina, Choroid, Superficial Plexus, RPCP, Deep Plexus, Outer Retina, Choriocapilaries, Depth Coded, SVC, DVC, ICP, DCP, Custom, Enface Quantification: FAZ, VFA, NFA, Vessel Area Density, Skeleton Area Density, Thickness map |
| Glaucoma analysis | RNFL, ONH morphology, DDLS, OU and Hemisphere asymmetry, Ganglion analysis as RNFL+GCL+IP and GCL+IPL, Structure + Function |

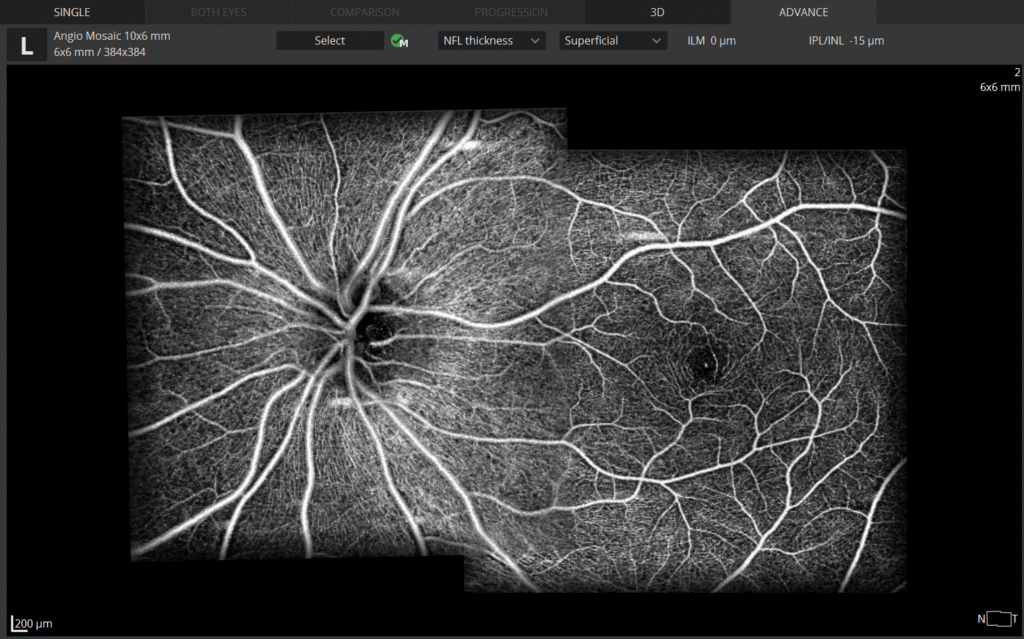

| Angiography mosaic | Acquisition: Auto, Manual; Mosaic modes: 10×10, 10×6, 12×5, 7×7, manual up to 12 images |
| Biometry OCT² | AL, CCT, ACD, LT, P, WTW |
| IOL Calculator³ | Hoffer Q, Holladay I, Haigis, Theoretical T, Regression II |
| Corneal Topography Map² | Axial [Anterior, Posterior], Refractive Power [Kerato, Anterior, Posterior, Total], Net Map, Axial True Net, Equivalent Keratometer, Elevation [Anterior, Posterior], Height, KPI (Keratoconus Prediction Index) |

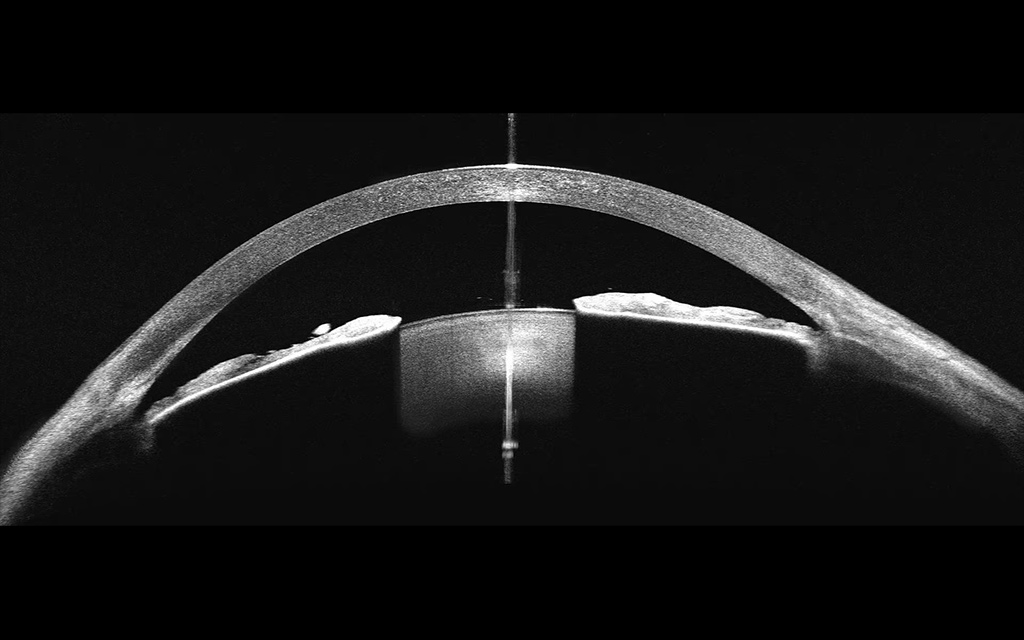

| Anterior (no lens/adapter required) | Anterior Chamber Radial, Anterior Chamber B-scan, Pachymetry, Epithelium map, Stroma map, Angle Assessment, AIOP, AOD 500/750, TISA 500/750, Angle to Angle view |
| Connectivity | DICOM Storage SCU, DICOM MWL SCU, CMDL, Networking |
| Fixation target | OLED display (the target shape and position can be changed), External fixation arm |
| Dimensions (L×W×H) / Weight | 479 × 367 × 493 mm / 30 kg |
| Power supply / Consumption | 100–240 V, 50/60 Hz / 90–110 VA |
| UWF LENS ⁴ | |
| Scan angle | ~105° ⁵ |
| Working distance | 15 mm |
| Scan types | 3D, Radial, Line, Angio¹, Full Range Radial, Full Range Line |
| Fundus tracking | iTracking |
| Overall scan depth | 2.6 mm / 5.4 mm in Full Range mode |
| ¹ Via connection with PTS software version 3.4 or higher ² An optional software module ³ The Biometry module and a separate license for the IOL Calculator are required ⁴ Ultra-Wide Field imaging is available with the optional UWF lens ⁵ Measured from the center of the eye | |
