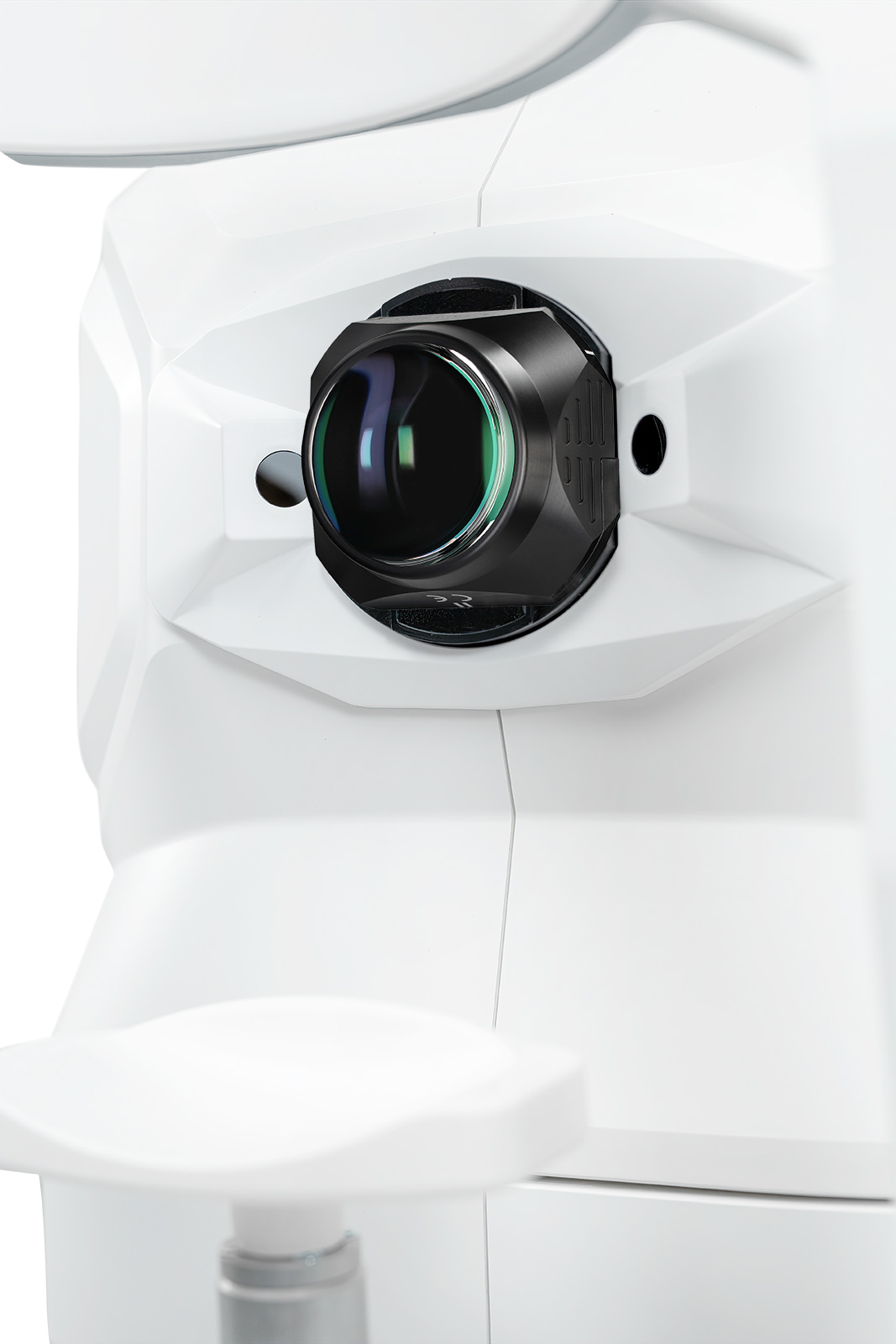

Ultra-Widefield Module

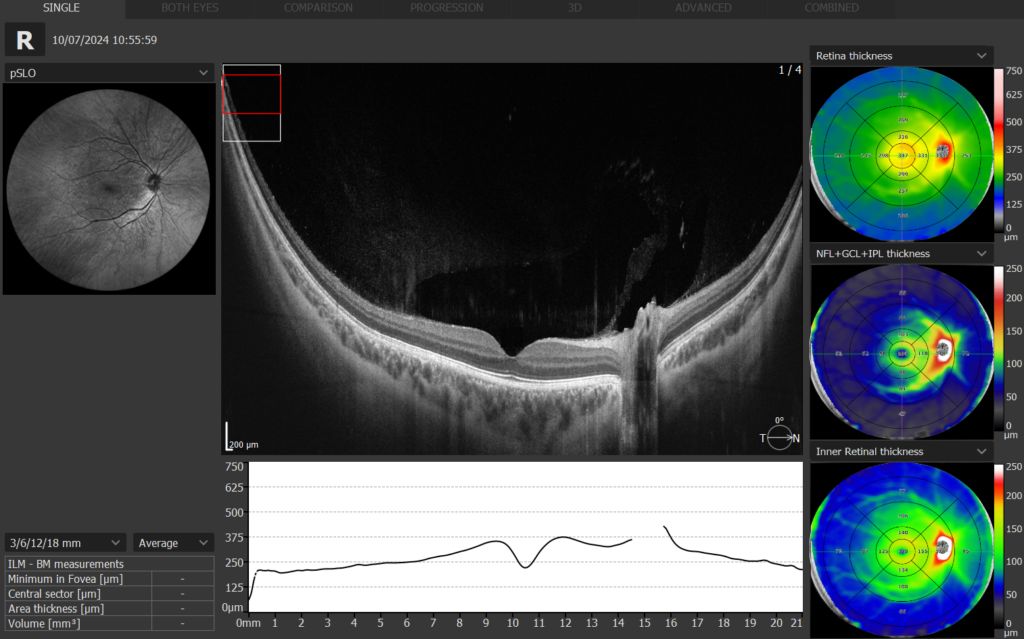

The UWF module provides a new wide perspective of imaging up to ~105º with a single scan. It allows the userto image the macular area along with the far periphery to capture the early stages of disease in the posterior partof the eye. The module allows 3D imaging for full analysis, averaging in enhancement mode, and angio OCT withthe ability to visualise perfusion problems in the periphery.
With the UWF feature in Extended DepthTM software, the diagnostic of high myopia patients will be even easier whileselecting Full Range scanning technology.For patients with difficulties, the UWF feature will provide an option of a Radial scan. This scan will take less time to attain a propersignal from the eye.
With the UWF feature in Extended DepthTM software, the diagnostic of high myopia patients will be even easier whileselecting Full Range scanning technology.For patients with difficulties, the UWF feature will provide an option of a Radial scan. This scan will take less time to attain a propersignal from the eye.
UWF module requires SOCT software version 21.0.0 and is available for our OCT with Fundus camera: REVO HR, REVO FC 130, and the REVO FC.
Technical Specifications

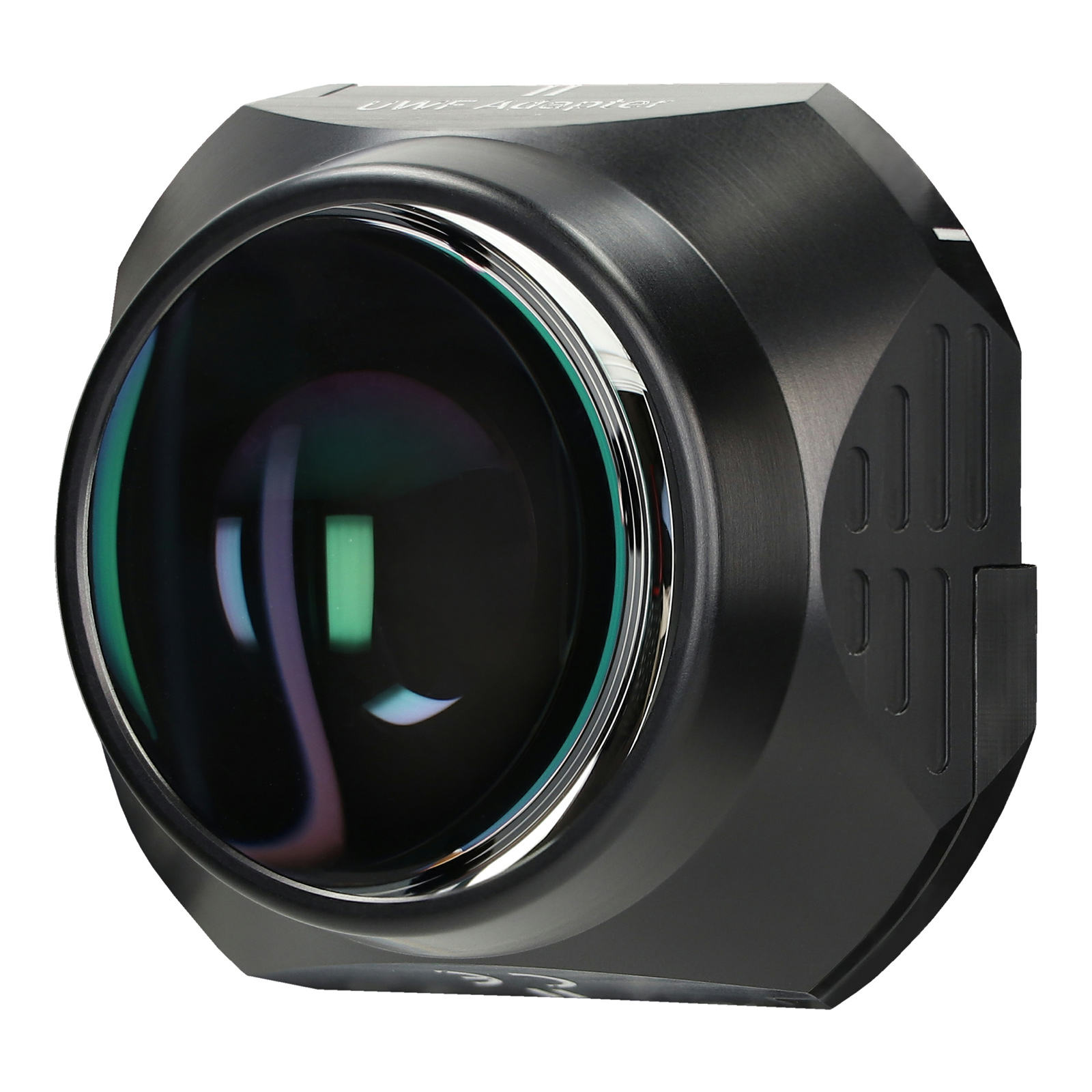

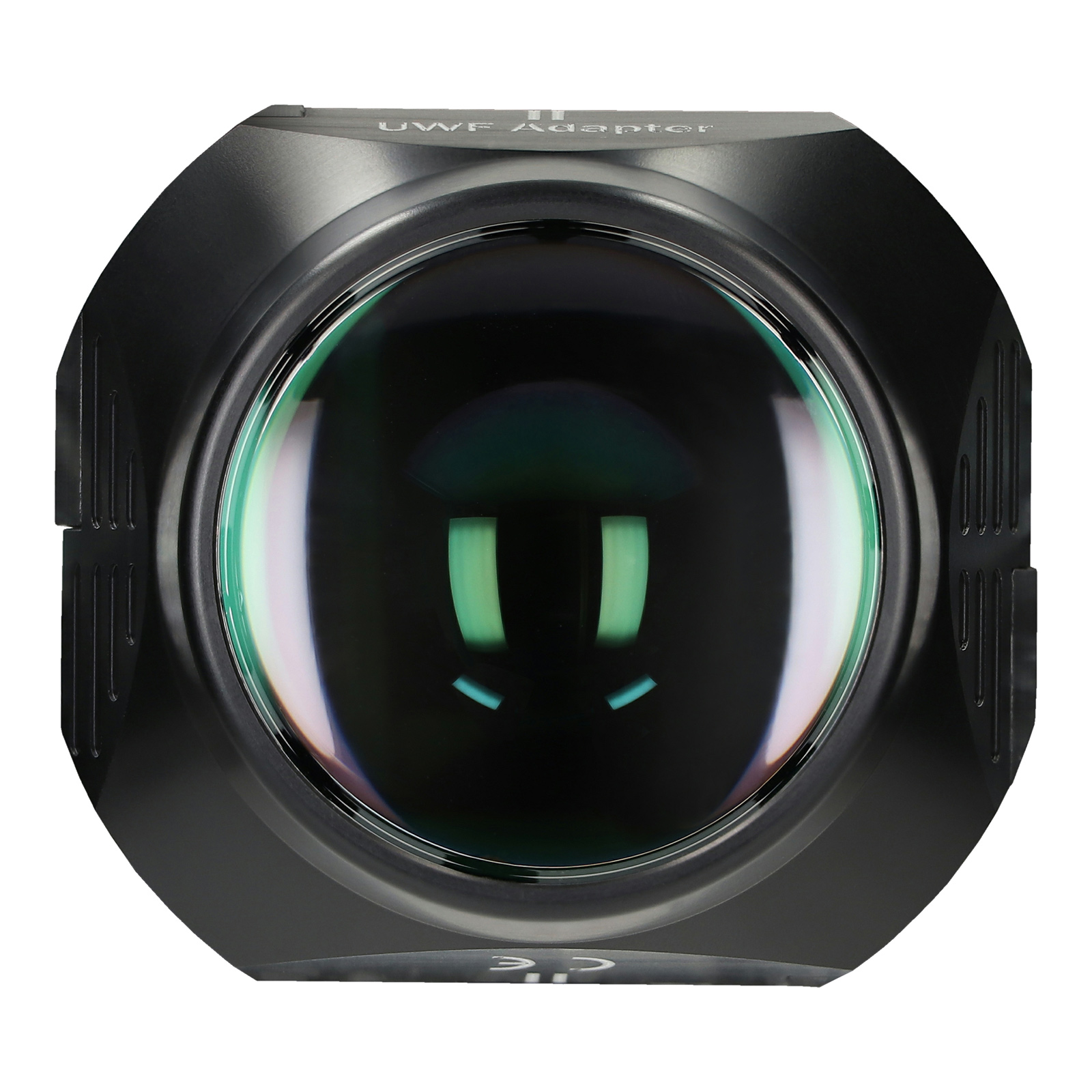

UWF LENS |
|
| Scan angle | ~105° ¹ |
| Working distance | 15 mm |
| Scan types | 3D, Radial, Line, Angio, Full Ranger Radial, Full Range Line |
| Fundus tracking | iTracking |
| Overall scan depth | 2.6 mm / 5.4 mm in Full Range mode |
